OptiLogic RS400 Industrial Laser Range Finder w/ RS-232 Serial Computer Interface Port is currently unavailable. We are working with our suppliers to secure additional supply as quickly as possible. If you are looking for a comparable replacement you can receive sooner, please consider the suggestions from our product experts belowor explore other items in the Range Finders.

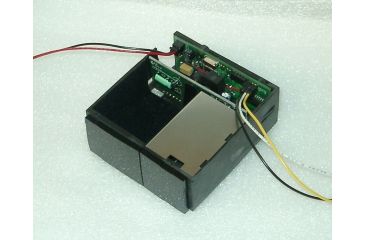

Product Info for OptiLogic RS400 Industrial Laser Range Finder w/ RS-232 Serial Computer Interface Port
Intended to be a great product for nearly any individual, we are confident you will appreciate the OptiLogic RS400 Industrial Laser Range Finder w/ RS-232 Serial Computer Interface Port . These Range Finders from the professional product specialists at Opti-Logic are designed working with long lasting and dependable components, as a way to supply you with a product which will be beneficial for quite some time. Opti-Logic has been devoted to delivering quality goods for a long time, and the OptiLogic RS400 Industrial Laser Range Finder w/ RS-232 Serial Computer Interface Port is the verification of that persistence for their customer base. Here at Night-Optics, we make it our personal obligation to make sure you leave with the most suitable item for all your needs, and the OptiLogic RS400 Industrial Laser Range Finder w/ RS-232 Serial Computer Interface Port is among the various items which we're proud to provide our shoppers. Since you will not be billed for shipping on orders placed of $49 or greater, there has not ever really been a better chance to buy the incredible OptiLogic RS400 Industrial Laser Range Finder w/ RS-232 Serial Computer Interface Port. For a great way to be certain that you're utilizing some of the finest products available, purchase the OptiLogic RS400 Industrial Laser Range Finder w/ RS-232 Serial Computer Interface Port.
The Opti Logic RS400 Industrial Rangefinder unit is laser range finder that outputs measured distance readings to an RS-232 compatible port. Range finder data then can be output from Opti-Logic RS 400 Industrial laser range-finder as either raw (relative) or calibrated (actual) distances. This information can then be used in several applications. OptiLogic RS-400 Industrial Laser Rangefinder is a great pre-made laser rangefinder to fit your needs and Opti Logic RS400 Industrial Rangefinder is also part of family of Opti-Logic Industrial laser range finders that are made to fit almost any project you will deal with.
Like all OptiLogic Rangefinders, the Opti-Logic RS400 is made in specialized factories!
Specifications for Opti-Logic RS400 Industrial Laser Range-Finder:
| Range: | 400 Yards (Minimum 4 Yards) |
| Data Raw Counts: | ~200Hz |
| Data Calibrated Range: | ~10Hz |
| Data Rate: | ~200Hz raw counts for un-calibrated operation;~ 10Hz for calibrated operation |
| Calibrated Range Units: | Feet, Meters, Yards |
| Laser: | Class I (eye-safe), 905nm +/- 10nm |
| Power: | 7-9VDC conditioned required, Current draw @ full power (~ 1.8W) |
| Laser Wavelength: | RS100 905nm +/- 10nm |
| Laser Divergence: | Vertical Axis -- 3.5mrad half-angle divergence; Horizontal Axis -- 1mrad half-angle divergence; (Approximate Beam "footprint" at 100m is 35cm x 5cm) |
| Accuracy: | +/- 1m on 1x1m2 diffuse target with 50% reflectivity |
| Resolution: | 0.2m |
| Dimensions: | 32x78x84mm |
| Weight: | < 8oz |
| Case: | Supplied as OEM modules consisting of open chassis containing optics and circuit boards. Custom Housings can be designed and built on request. |
Features of Opti Logic Industrial Laser Range Finder RS400:
- Compact
- Light weight
- ASCII Characters
- Protocol: RS232 - 8, N, 1 (no handshaking)
- Baud Rate:19200
- Connections:Transmit, Receive, and Ground Wires
Package Contents:
- Opti-Logic RS400 Industrial Laser Range Finder
