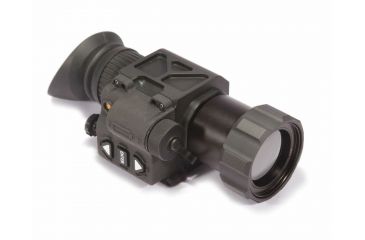

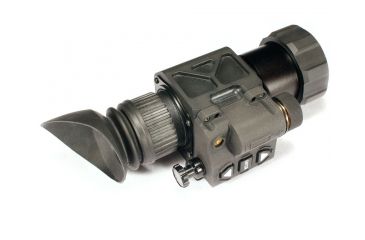

ATN Thermal Imaging Monocular OTS-X-F650 - 640x480, 50mm, 30Hz
Tap Tap to Zoom
Product Discontinued by Manufacturer
ATN Thermal Imaging Monocular OTS-X-F650 - 640x480, 50mm, 30Hz has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Personal Thermal Imaging yourself to try and find the perfect replacement for you!
Product Info for ATN Thermal Imaging Monocular OTS-X-F650 - 640x480, 50mm, 30Hz
Fabricated to be described as a great item for almost any individual, we're confident you will appreciate the ATN Thermal Imaging Monocular OTS-X-F650 - 640x480, 50mm, 30Hz . These Personal Thermal Imaging through the professional product experts at ATN are designed using heavy duty and dependable components, to be able to provide you with product which will be effective for quite some time. ATN has been developing superior quality merchandise for a number of years, and the ATN Thermal Imaging Monocular OTS-X-F650 - 640x480, 50mm, 30Hz is their way of revealing exactly how much they care. At Night-Optics, our obligation is to make sure you depart along with the ideal item for your requirements, and the ATN Thermal Imaging Monocular OTS-X-F650 - 640x480, 50mm, 30Hz is one of the many items that we're delighted to be able to offer our buyers. And since you won't be charged for shipping and delivery on transactions of $49 or higher, there's not ever been a more suitable moment to discover the extraordinary ATN Thermal Imaging Monocular OTS-X-F650 - 640x480, 50mm, 30Hz. For a fantastic way to ensure you are using some of the greatest products obtainable, choose the ATN Thermal Imaging Monocular OTS-X-F650 - 640x480, 50mm, 30Hz.
The ATN OTS-X 2.5x 30Hz Thermal Imager TIMNOTSXF650 is designed to be a versatile, compact, lightweight yet rugged thermal viewer that can be easily carried in a cargo pocket for Law enforcement and Sportsmen alike. This Heat Seeking Monocular from ATN is one of the most affordable thermal viewers on the market that includes a full 640x480. One of the most unique features of the ATN F650 OTSX Thermal Scope is the ability to interchange the objective lens so you can have multiple magnifications based on your need or mission.
Specifications for ATN OTS-X-F650 2.5X (30Hz) Thermal Imaging Viewer:
| Sensor (microbolometer): | 640 x 480 |
| Type: | Uncooled |
| Material: | Vanadium oxide (VOx) |
| Image Size (output resolution): | 800x600 |
| Frame rate: | 30 Hz |
| Video output: | Analog RS-170 |
| Lens: | 50 mm |
| Display: | Color OLED matrix, SVGA< 800x600 |
| Thermal Sensitivity: | <50mK |
| Spectral Response: | 7-14 um |
| Field of View: | 14° |
| Eye Relief: | 27 mm |
| Diopter Adjustment: | -1.5 |
| Optical Magnification: | 2.5X |
| E-Zoom: | 5X, 10X, 20X |
| Human Detection: | 1300 |
| Human Recognition: | 500 |
| Human Identification: | 320 |
| Vehicle Detection: | 2800 |
| Vehicle Recognition: | 1100 |
| Vehicle Identification: | 700 |

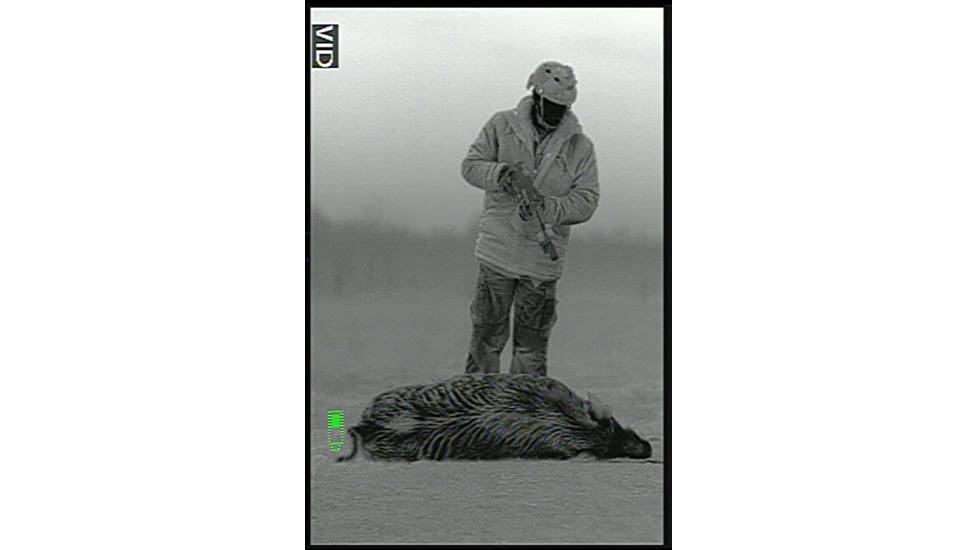

| Polarity control: | White hot / Black hot / Multiple Color Modes |
| Start up time: | <4 sec |
| Waterproof: | Yes |

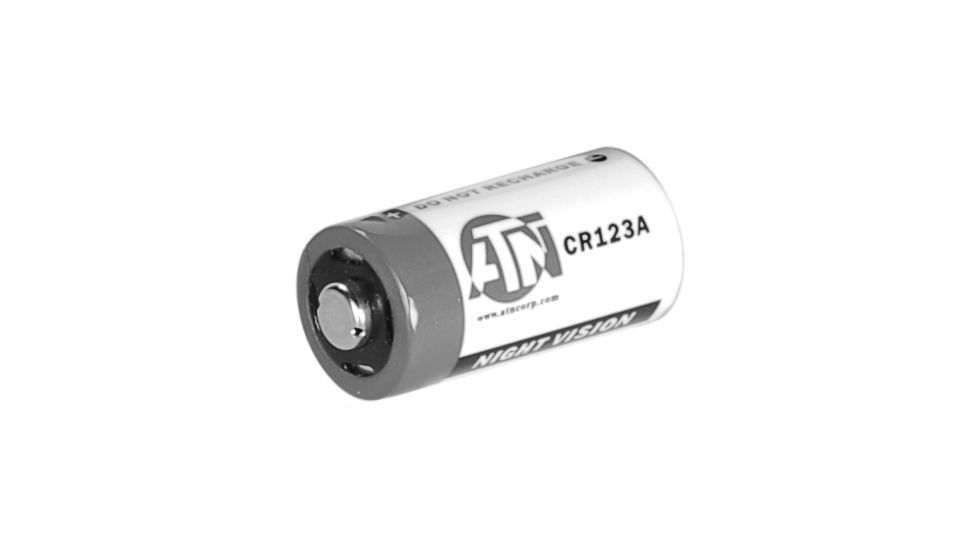

| Battery type: | 1 x CR123A battery type |
| Battery Life: | 2+ hrs |
| Weight: | 1.4lb /640 gr |
| Dimensions: | 165 x 61 x 83 mm /6.5x2.4x3.3" |
| Warranty: | 1 year |
Features of ATN Thermal Image OTS X F650 Scope:
- Resolution 320 x 240
- Ergonomic Design
- Fast Imaging (30hz)
- Compact Rugged Construction
- Interchangable Optics
- Variable Geometry Display
- E-Zoom
- Digital Brightness Control
- Icon Based Menu System

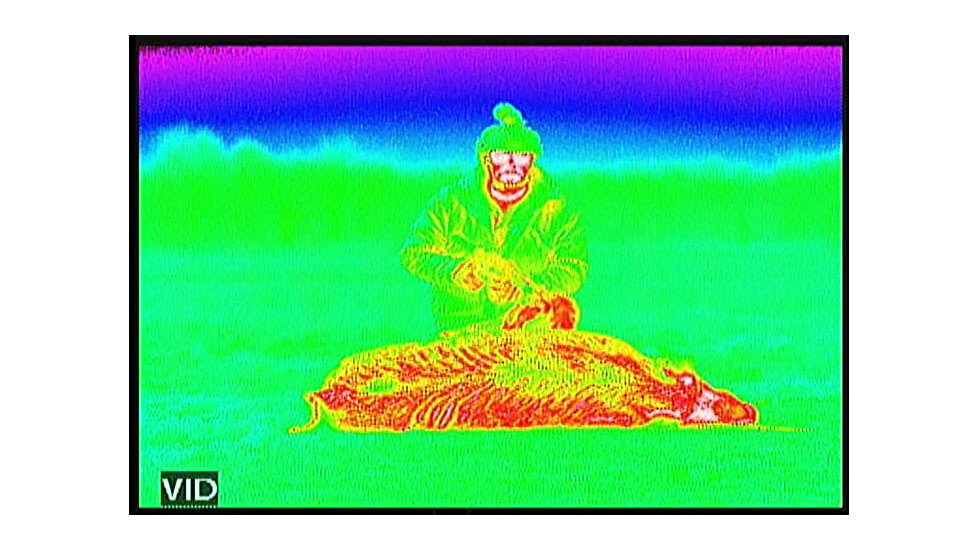

- Color Modes
- Black/White Polarity
- VOx Vanadium Oxide Detector
- 800x600 Display
- Video Output
- 1 Year Warranty
Package Contents:
- ATN OTS-X 2.5x 30Hz Thermal Imager TIMNOTSXF650
Batteries
Thermal Monocular Accessories
