Product No Longer Available

Unfortunately Morovision Scorpion Multi-Purpose Thermal Imager with 12degree Lens, NTSC is not listed by Night-Optics.You can also explore other items in the Thermal Vision Rifle Scopes yourself to try and find the perfect replacement for you!

Product Info for Morovision Scorpion Multi-Purpose Thermal Imager with 12degree Lens, NTSC

The Morovision Scorpion Multi-Purpose Thermal Imager with 12degree Lens, NTSC was created in order to function as the best item for anybody needing an exceptional selection. Made using some of the very best accessible components and engineering, these particular Thermal Vision Rifle Scopes from the product professionals at Morovision will last an exceptionally long time. For a quite a while, Morovision has been helping to make top of the range products, and the Morovision Scorpion Multi-Purpose Thermal Imager with 12degree Lens, NTSC is proof of their persistence for making sure that you possess the products you'll want to succeed in almost any circumstance. Here at Night-Optics, we make sure it is our personal obligation to ensure that you depart with the most suitable item for all your expectations, and the Morovision Scorpion Multi-Purpose Thermal Imager with 12degree Lens, NTSC is amongst the various items which we have been extremely pleased to offer our shoppers. And because we won't charge for delivery on orders placed of $49 or over, there could never be a more suitable opportunity to buy the outstanding Morovision Scorpion Multi-Purpose Thermal Imager with 12degree Lens, NTSC. To have an amazing method to make sure you are utilizing some of the very best which the industry offers, choose the Morovision Scorpion Multi-Purpose Thermal Imager with 12degree Lens, NTSC.image

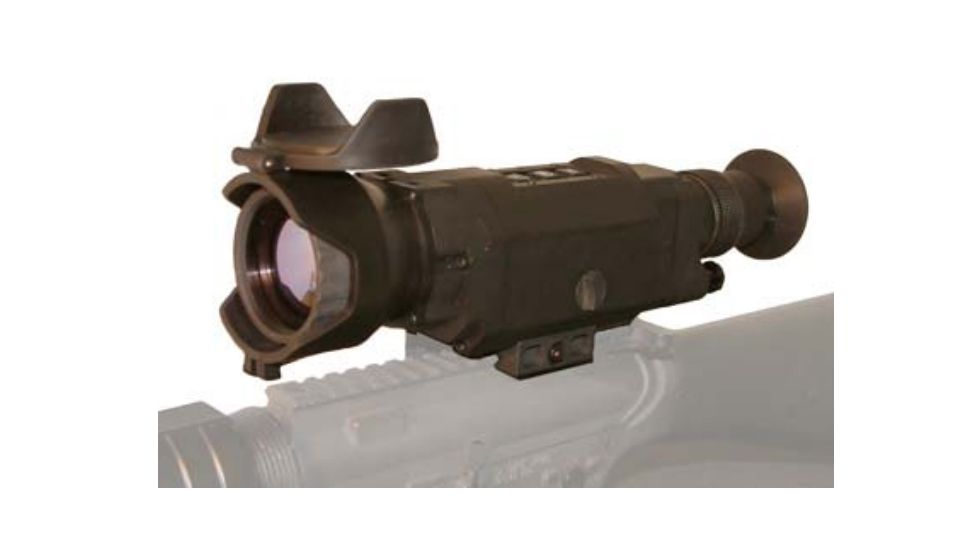

The Morovision Thermal Scorpion Multi-Purpose Imager MVP-5000-000 combines the ergonomic features of a handheld and the convenience of weapon mounting. This Thermal Imaging Rifle Scope from Morovision is based on the proven 320 x 240 Thermal-Eye 4500 Amorphous Silicon microbolometer core, making it perfect for force protection, border patrol officers, police SWAT and special operations forces. The Morovision 12 Degree Scorpion Multiple Purpose Thermal Imaging Device has an image capture feature that stores 200 pictures with USB download interface. This Morovision Thermal Imager Includes protective shield to reduce eyepiece exposure from sand and dust. The Morovision Multi-Purpose Scorpion Thermal Imaging Device offers More than 6 hours operation with four CR123 lithium batteries.

Specifications for Morovision 12° Scorpion Multi-Purpose Thermal Image Gun Sight:

Infrared Focal Plane Array
Type & Material: Amorphous Silicon Microbolometer
Pixel Count (Resolution): 320 x 240
Spectral Response: 7-14 um (filter bandwidth)
Thermal Sensitivity: <50 mK
Thermal Imaging Performance
Startup Time: ~ 4 sec
Contrast / Brightness: Fully Automatic, advanced image processing
Susceptibility to Blinding Visible Light: None
Infrared Polarity: User Selectable White = Hot, Black = Cold
Lens Focal Length: 50mm w/ 750ft /230m Range to Detect Human Activity
Lens Focal Length: 25mm w/ 1500ft / 460m Range to Detect Human Activity
Lens Focal Length: 12mm w/ 3000ft / 915m Range to Detect Human Activity
Video
Output Format: Analog NTSC on rear outlet jack
Display Brightness: User Adjustable
Digital Zoom: 2X, 4X
Captures 200 images: USB downloadable
Switchable Polarity: White Hot / Black Hot
Eyepiece: Adjustable Diopter and focusing
Power
Power Source: 4 CR123 Lithium batteries
Operating Time: 6 hours (77°F / 25°C Night Operation)
Auxiliary Power: 9 to 12 VDC input on rear outlet jack
Environmental Characteristics
Operating Temperature: -4°F to 140°F (-20°C to 60°C)
Storage Temperature: -4°F to 176°F (-20°C to 80°C)
Water & Shock Resistance: Waterproof to 9 feet (3m) submersion, buoyant in fresh water, Shockproof to 4 feet (1.2m) drop
EMC Compliance: FCC Part 15
Physical Characteristics
Size: 50mm - 10" L x 2.75" W x 3" H (25.4 x 6.9 x 7.6cm); 25mm - 10.75" L x 2.75" W x 3" H (27.3 x6.9 x 7.6cm); 12mm - 11" L x 2.75" W x 3" H (28.0 x6.9 x 7.6cm)
Weight: 13 oz (381g), batteries installed; 50mm, 31 oz.; 25mm, 31 oz.; 12mm, 34 oz.;

Features of Morovision 12° Multi-Purpose Scorpion Thermal Imaging Scope:

  • Rapid start-up in 4 seconds
  • 5 selectable reticles
  • Digital boresight capability
  • Image capture feature stores 200 pictures with USB download interface
  • More than 6 hours operation with four CR123 lithium batteries.
  • Amorphous Silicon detector with 320 x 240 resolution
  • Includes protective shield to reduce eyepiece exposure from sand and dust
  • Riser, 1 1/2°± See-Through Picatinny Rail Riser, and AC power adaptor
  • Handstrap, MIL-STD-1913 (Picatinny Rail) mount and 1/4-20 thread mount for handheld, weaponmount or tripod operation
  • Lightweight, rugged design " unit withstands 4ft drop, 2ft on-weapon drop and 9ft submersion - live fire tested on M4 and suitable for M16

Package Contents:

  • Morovision Thermal Scorpion Multi-Purpose Imager MVP-5000-000
  • Protective Carrying Case
  • Four 123 Lithium Batteries
  • Neck Lanyard & Hand Strap
  • Lens Cover
  • Lens Cleaning Cloth
  • Tripod Mount
  • User Manual
  • Quick Reference Card
  • Soft Carrying Case
  • Camera Interface Cable (three heads)
  • Standard Picatinny Rail Mount
  • Open and Shuttered Eyecup
  • Protective Demist Shield
