Product Discontinued by Manufacturer

ATN NVM14 Night Vision Monocular has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Night Vision Monoculars yourself to try and find the perfect replacement for you!

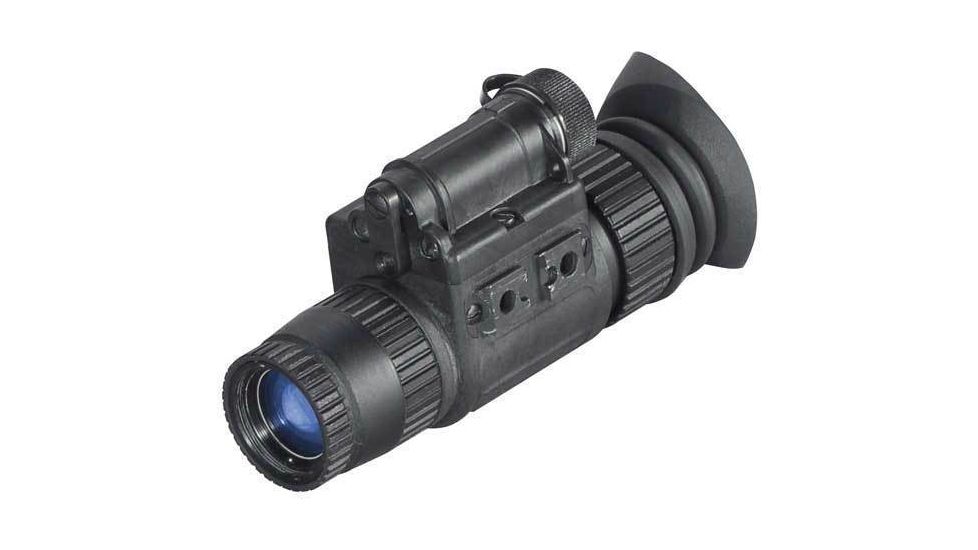

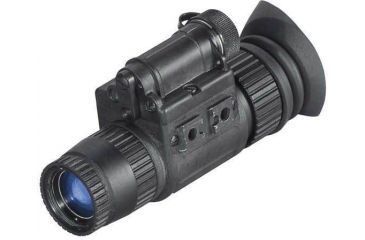

Product Info for ATN NVM14 Night Vision Monocular

Should you be looking for an amazing bargain on the ATN NVM14 Night Vision Monocular, then you've found yourself in the right location. Made utilizing some of the most useful available components and construction, these unique Night Vision Monoculars through the product professionals at ATN will last you an incredibly lengthy time. ATN has been devoted to providing top end products for many years, and the ATN NVM14 Night Vision Monocular is the proof of that dedication to their customer platform. At Night-Optics, we make it our responsibility to make sure you receive the best solution for your specifications, and featuring the ATN NVM14 Night Vision Monocular is a thing that we're delighted to do. And because you won't be charged for delivering on transactions of $49 or more, there's not ever really been a significantly better moment to discover the extraordinary ATN NVM14 Night Vision Monocular. For a fantastic way to make sure you are using some of the finest products out there, buy the ATN NVM14 Night Vision Monocular.image

ATN NVM14 NightVision Monocular is a hand-held, head-mounted, helmet-mounted, or weapon-mounted Night Vision Monoculars that enables walking, driving, weapon firing, short-range surveillance, map reading, vehicle maintenance, and administering first aid in both moonlight and starlight. Each unit allows for vertical adjustment (by using head straps), fore-and-aft adjustment, objective lens focus, and eyepiece focus. The ATN NightVision Monoculars are also equipped with an infrared light-emitting source. NVM-14 Night Vision monocular by ATN utilizes the principle of intensification of the residual light which is reflected from the surrounding objects. The optical system of the monocular consists of: an objective lens, an image intensifier tube and an eyepiece.

The NVM14 from ATN is a high performance, versatile Night Vision Monoculars. It is designed to be multifunctional: hand-held as a monocular, head-mounted/ helmet-mounted as a single-eye goggle, or weapon- mounted as a Night Vision Monoculars. The NVM14 utilizes a single 2nd gen image intensifier tube combined with specially designed optics to provide crisp, clear images under the darkest of conditions. The NVM14 has an optional flip-up headset or helmet mount with an automatic off-feature. The automatic off-feature turns the unit off when it is flipped-up out of the viewing position. These ATN NightVision Devices have a host of additional features such as a built-in IR illuminator with rotary lens to select between IR Spot or Flood Beam as well as a built-in automatic highlight cutoff to protect the image intensifier. The NVM-14 also includes a bright light and low battery warning indicators built into the viewing area of the eyepiece. The NVM14 are compatible with most weapons, IR laser aiming/illuminating devices and standard collimated reflex sights.

Specifications for ATN NVM14 NightVision Monocular NVM14-2I, NVM14-2IA, NVM14-CGTI:

Magnification: 1X
Lens system Element: F1.2, 25 mm
Exit Pupil: 14 mm
Eye Relief: 25 mm
Eye use: Left or Right
FOV: 40 deg.
Range of focus: 0,25 m to infinity
Diopter Adjustment: -6 to +6
ABC- Automatic Brightness Control: Cut-off to Protect IIT Yes
Bright Light Indicator: Yes
Controls: Digital
Infra-red Illuminator: Built-in. Rotary Select - Flood & Spot
IR Illumination Range: 20 meters
IR Indicator LED: ON/
Battery: Low
Weight w/ Battery: 0.34 kg (0.75 lbs)
Dimensions: 120 x 49 x 69 mm (4.7" x 2.8" x 2.0")
Environmental rating: Waterproof 20 m, 1 hr.
Operation Temperature: -40 to +50 C
Storage Temperature: -50 to +70 C
Flip Up Headset w/ Automatic System Off: Yes
Battery Life w/o IR: ON 30 hrs. (AA), 60 hrs. (3 V, Lithium)
Battery Life w/ IR: ON 30 hrs. (3 V, Lithium) Continuous
Power supply: (1) 3 V Lithium, or (1) AA Alkaline
Mil-Spec: 810 Standards Complies
Waterproof: 20 m for 1 hrs.

Features of ATN NVM14 Night Vision Monocular

  • Gen 2 IIT, Built-in IR Illuminator, Low Battery Indicator, Multi-purpose

Package Contents:

  • ATN NVM14 Night Vision Monocular
