Product Discontinued by Manufacturer
Armasight Zeus 4 Thermal Imaging Rifles Scope 4-4.8x42mm Mag 160x120 Core 30 Hz w/FREE Armasight DT Digital Recorder has been discontinued by Armasight and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Thermal Vision Rifle Scopes yourself to try and find the perfect replacement for you!
Product Info for Armasight Zeus 4 Thermal Imaging Rifles Scope 4-4.8x42mm Mag 160x120 Core 30 Hz w/FREE Armasight DT Digital Recorder
The Armasight Zeus 4 Thermal Imaging Rifles Scope 4-4.8x42mm Mag 160x120 Core 30 Hz w/FREE Armasight DT Digital Recorder was made to be the ideal item for anybody looking for a high quality selection. These Thermal Vision Rifle Scopes through the skilled product specialists at Armasight are fashioned using dependable and efficient resources, as a way to provide you with a product that will be beneficial for a long time. Armasight has been devoted to providing high quality goods for many years, and the Armasight Zeus 4 Thermal Imaging Rifles Scope 4-4.8x42mm Mag 160x120 Core 30 Hz w/FREE Armasight DT Digital Recorder is the proof of that dedication to their consumer platform. Here at Night-Optics, we ensure that it is our responsibility to make sure you obtain the perfect solution for all of your needs, and showcasing the Armasight Zeus 4 Thermal Imaging Rifles Scope 4-4.8x42mm Mag 160x120 Core 30 Hz w/FREE Armasight DT Digital Recorder is a thing that we are pleased to do. Since you will receive no cost on shipment on orders placed of $49 or more, there's rarely ever been a more rewarding time to buy the amazing Armasight Zeus 4 Thermal Imaging Rifles Scope 4-4.8x42mm Mag 160x120 Core 30 Hz w/FREE Armasight DT Digital Recorder. For a fantastic way to make sure that you are working with some of the most effective equipment, buy the Armasight Zeus 4 Thermal Imaging Rifles Scope 4-4.8x42mm Mag 160x120 Core 30 Hz w/FREE Armasight DT Digital Recorder.

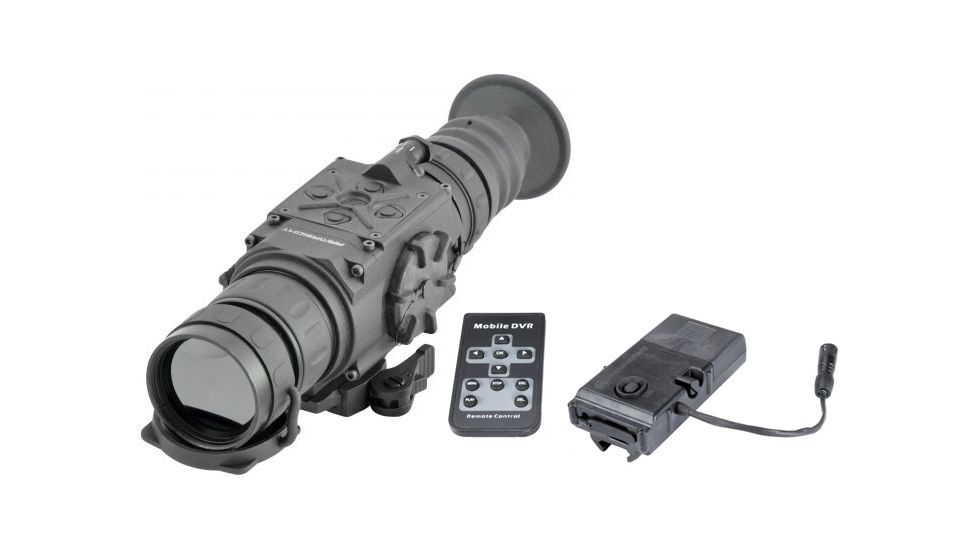

The Armasight Zeus 4 Thermal Imaging Rifles Scope 4x Mag 160x120 Core 30 Hz w/FREE Armasight DT Digital Recorder is a terrific buy that gives you three products at one low price! This exclusive value package is available only here. The Armasight Zeus 4 Thermal Imaging Rifles Scope 4x Mag 160x120 Core 30 Hz w/FREE Armasight DT Digital Recorder includes the following:
- Armasight Zeus 4 Thermal Imaging Rifles Scope 4x Magnification 160x120 Core 30 Hz TAT213WN4ZEUS41

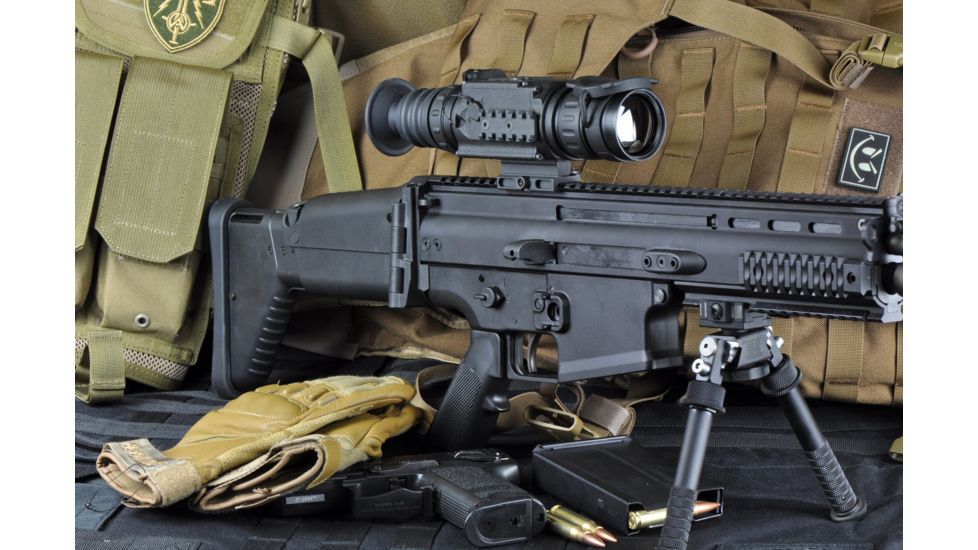

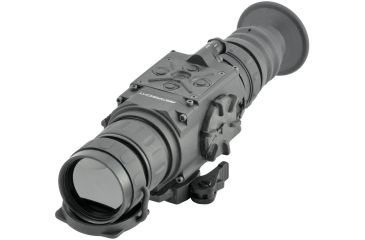

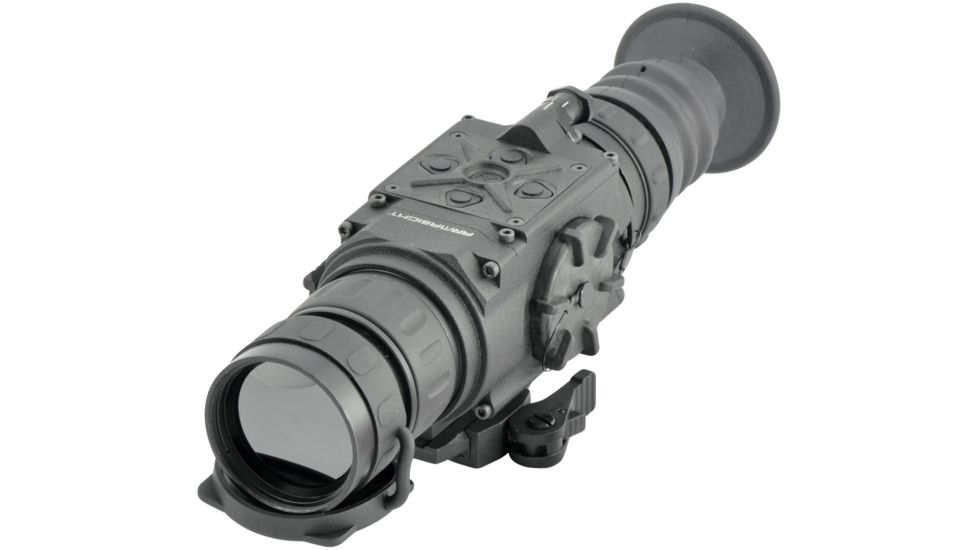

The Armasight Zeus 4X 160x120 Core 30 Hz Thermal Imaging Rifle Scope is made with the ergonomic features of a handheld scope with the added convenience of weapon mounting capabilities. Based on the proven 160x120 microbolometer core, this Thermal Scope from Armasight is the perfect scope for force protection, border patrol officers, police SWAT officers and special operations forces, providing users with the necessary tools to be successful in both daytime and nighttime field conditions. The uncooled thermal imaging on the Armasight Zeus IV 30Hz Thermal Imaging Rifle Scope cuts through dust, smoke, fog, haze, and other battlefield obscurants. Use of this Armasight Thermal Tactical Scope cannot be detected, as it emits no visible light or RF energy and operates without the use of illuminators or IR lights. For a great way to enhance your situational awareness, choose the Armasight Zeus 4 Thermal Imaging Tactical Weapon Sight.
- Armasight Recorder DT Digital Recorder for all Armasight Digital and Thermal Devices ATAM000004
The Armasight Digital Recorder is just what you need to take your thermal vision to the next level. This thermal vision accessory by Armasight is a high-performance, high-definition video recorder for Armasight Digital or Thermal Scopes. The Armasight Digital Thermal Imaging Recorder adapts MPEG-4 video compression with resolution of up to 704x576, 30 fps. It is a fully real-time, high-definition, low power consumption, easy-to-operate professional video recorder. The Armasight DVR supports SD cards of up to 32 GB and direct playback by TV-sets, monitor, and PC by SD card reader.
Specifications for Armasight Zeus 4 Thermal Imaging Rifles Scope 4x Mag 160x120 Core 30 Hz w/FREE Armasight DT Digital Recorder
Specifications for Armasight thermal Imaging Rifle Scope - Zeus 4:
| Magnification (NTSC/PAL): | 4.0x / 4.8x |
| Objective Lens Type: | Germanium |
| Type of Focal Plane Array: | FLIR Tau 2 |
| Pixel Array Format: | 160x120 |
| Pixel Size: | 25um |
| Resolution, mrad: | .60 |
| Display Type: | AMOLED SVGA 060 |
| Pixel Display Format: | 800×600 |
| Display Brightness: | Discretely Adjustable to 8 Levels |
| Turn-on Time, max: | 3 sec |
| Digital Zoom: | 1x, 2x, 4x, and 8x |

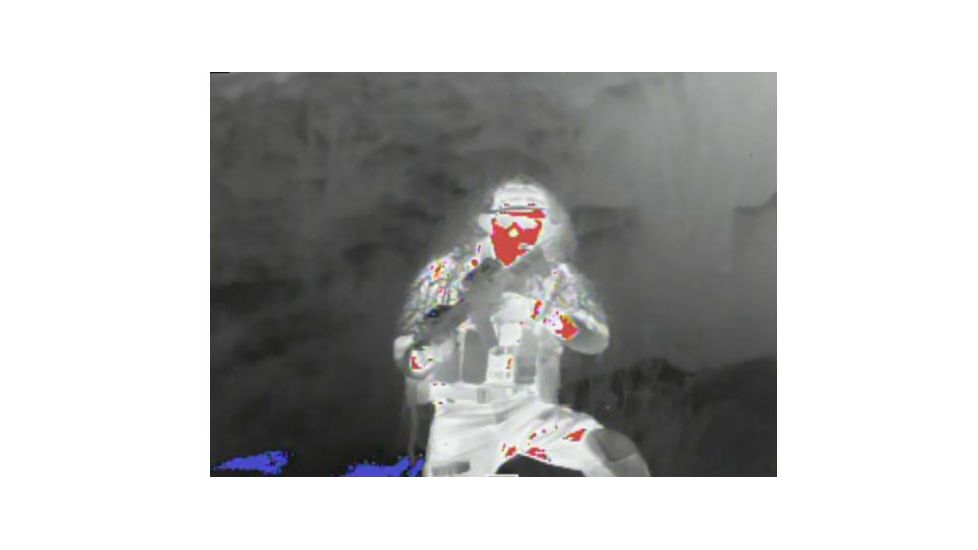

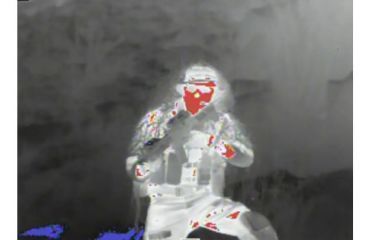

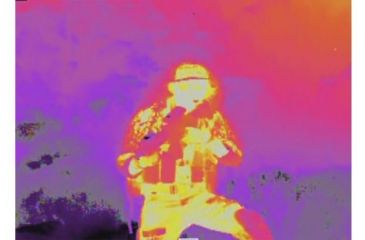

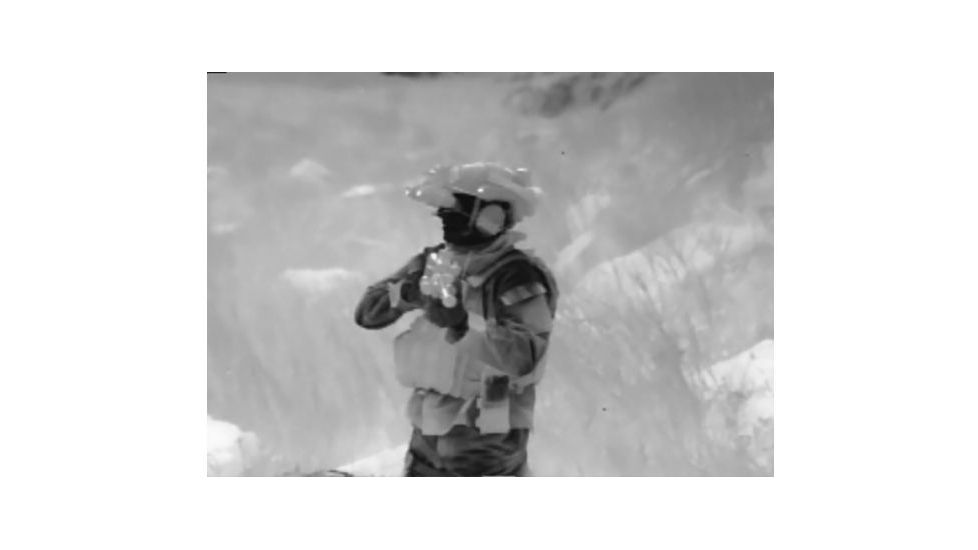

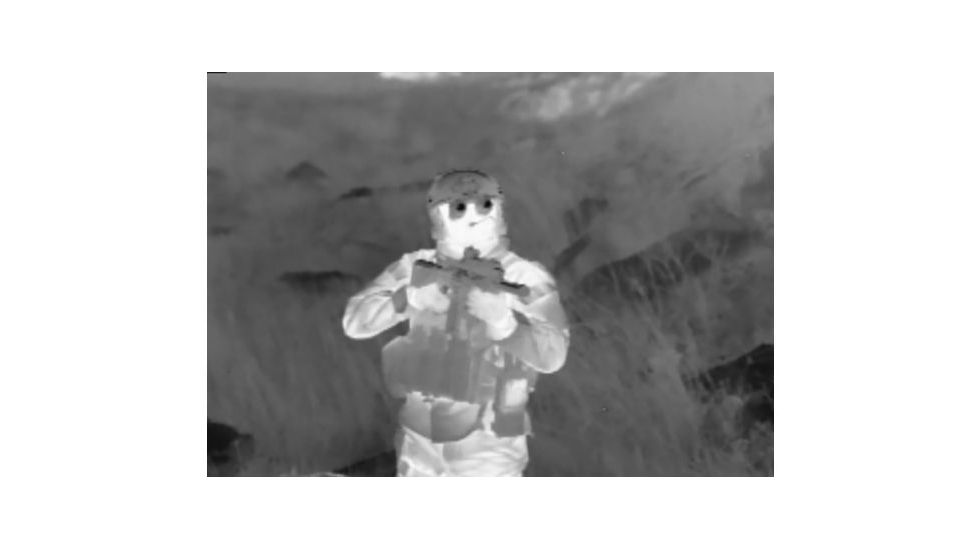

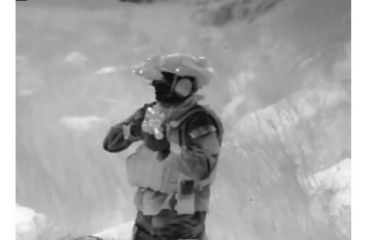

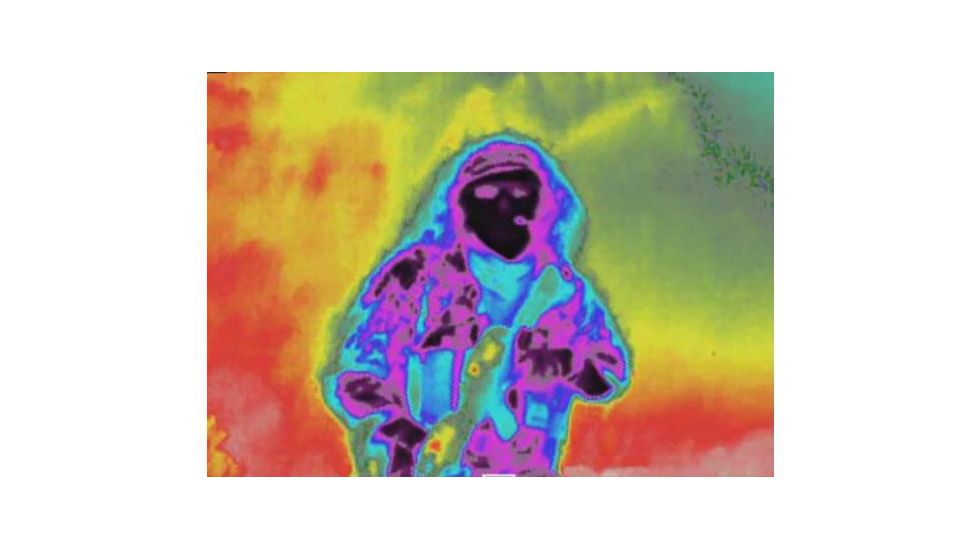

| Temperature Imaging Modes (Image Palettes): | White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain, and OEM Custom Color Modes White Hot/ Black Hot/ Rainbow/ Colour |
| Reticle Type 6-Pattern Digitally Controlled: | Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, or No Reticle, and No Reticle |
| Reticle Color: | Black, White, Red, Cyan |
| Windage/Elevation Boresight Adjustment Type: | Digitally Controlled |
| Windage/Elevation Boresight Increment: | 2 MOA |
| Windage Adjustment Range: | +-160 MOA |
| Elevation Adjustment Range: | +-120 MOA |
| Output Resolution: | PAL - 768×574 pixels; NTSC - 640×480 pixels |
| Weapon Mount Type: | Picatinny MIL STD 1913 and Weaver Rails |
| Dimensions: | 10×2.8×3.2 |
| Height of the Zeus Axis above Rail: | 40 mm (1.57 in) |
| Weight (w/o Batteries): | 1.5 lbs |
| Field of View ang. X degrees: | 5.5 |
| Field of View ang. Y Degrees: | 4.0 |
| Objective Focal Length: | 42mm |
| Objective F-Number: | 1;1 |
| Eyepiece Focal Length: | 25 mm |
| Entrance Pupil Diameter: | 42mm |
| Exit Pupil Diameter: | 10 mm |
| Eye Relief: | 45 mm |
| Focus Method: | Manual |
| Focusing Range: | 5 m to inf. |
| Diopter Adjustment: | Manual |
| Diopter Adjustment Range: | ±5 diopter |
| Battery Two: | CR 123A (2×3V) |
| Current Consumption, maximum: | 350 mA |
| Battery Life at 20 °C (68 °F): | 4 hr |
| External Power Supply: | 6 VDC/ 1 А |
| Operating Temperature: | -40 to +50 °C (-40 to +122 °F) |
| Storage Temperature: | -50 to +70 °C (-58 to +158 °F) |
| Recoil Resistance: | 700g |
| Immersion: | 10 m for 30 min |
Features of Armasight Zeus 4 Thermal Imaging Rifles Scope 4-4.8x42mm Mag 160x120 Core 30 Hz w/FREE Armasight DT Digital Recorder
- Features of Armasight Zeus 4 Thermal Imaging Rifle Scope:
- Multi-version with magnifications in the range of 1.5x to 7.2x
- High-performance thermal imaging camera
- Lightweight and robust design
- Easy to operate
- Manually adjustable eyepiece and objective lens
- Real-time display
- Adjustable display brightness
- Selectable 6-pattern reticle including no reticle option
- Switchable reticle color
- Selectable image palette
- Temperature measurement
- Hunting scenarios function
- Field environment corrections
- Zoom
- Windage/Elevation boresighting
- Displaying information on the current operating state (battery status, active function etc.)
- Wireless remote control
- Analog video input and output (NTSC/PAL)
- Powered by two standard CR123A batteries.
- Power input capability
- Digital video recorder (optional)
- Fits any Picatinny MIL STD 1913 and Weaver rail with an adjustable quick-release mount Serviceability under severe conditions
- Filled with dry nitrogen to prevent internal fogging
- Waterproof
Package Contents:
Armasight Zeus 4 Thermal Imaging Rifles Scope 4-4.8x42mm Mag 160x120 Core 30 Hz w/FREE Armasight DT Digital Recorder
- Armasight Zeus 4 Thermal Imaging Rifle Scope
- Objective Lens Cap
- Eyecup
- Mount
- CR123A Lithium Battery
- Advanced Wireless Remote Control (AWREC)
- Picatinny Adapter for Advanced Wireless Remote Control
- Operation and Maintenance Manual
- Soft Carrying Case
- Hard Shipping/Storage Case
- Armasight Recorder DT Digital Recorder for all Armasight Digital and Thermal Devices
