Product No Longer Available

Unfortunately Thermal Eye 4000 Vehicle Mounted Thermal Imaging Camera System TICA4000M TICA4000B (34020 / 34030) is not listed by Night-Optics.You can also explore other items in the Thermal Vision Cameras yourself to try and find the perfect replacement for you!

Product Info for Thermal Eye 4000 Vehicle Mounted Thermal Imaging Camera System TICA4000M TICA4000B (34020 / 34030)

If you're shopping for a great bargain for the Thermal Eye 4000 Vehicle Mounted Thermal Imaging Camera System TICA4000M TICA4000B (34020 / 34030), then you have come to the right place. Formulated working with some of the most heavy duty and dependable resources around, these Thermal Vision Cameras by Thermal Eye can provide an item which gives you numerous years of dependability. For a quite a while, Thermal Eye has been generating high-end goods, and the Thermal Eye 4000 Vehicle Mounted Thermal Imaging Camera System TICA4000M TICA4000B (34020 / 34030) is proof of their dedication to ensuring that you've got the items you'll want to thrive in almost any circumstance. Right here at Night-Optics, our obligation is to ensure that you depart along with the ideal item to meet your requirements, and the Thermal Eye 4000 Vehicle Mounted Thermal Imaging Camera System TICA4000M TICA4000B (34020 / 34030) is one of the many products that our company is delighted to be able to provide our consumers. Because we won't bill for delivery on transactions of $49 or over, there could never be a better opportunity to pick the outstanding Thermal Eye 4000 Vehicle Mounted Thermal Imaging Camera System TICA4000M TICA4000B (34020 / 34030). For a good way to ensure that you are working with some of the highest quality equipment, choose the Thermal Eye 4000 Vehicle Mounted Thermal Imaging Camera System TICA4000M TICA4000B (34020 / 34030).image

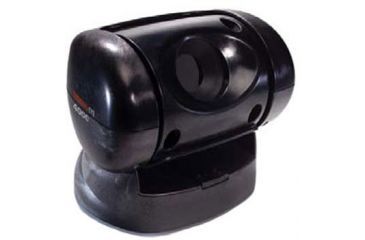

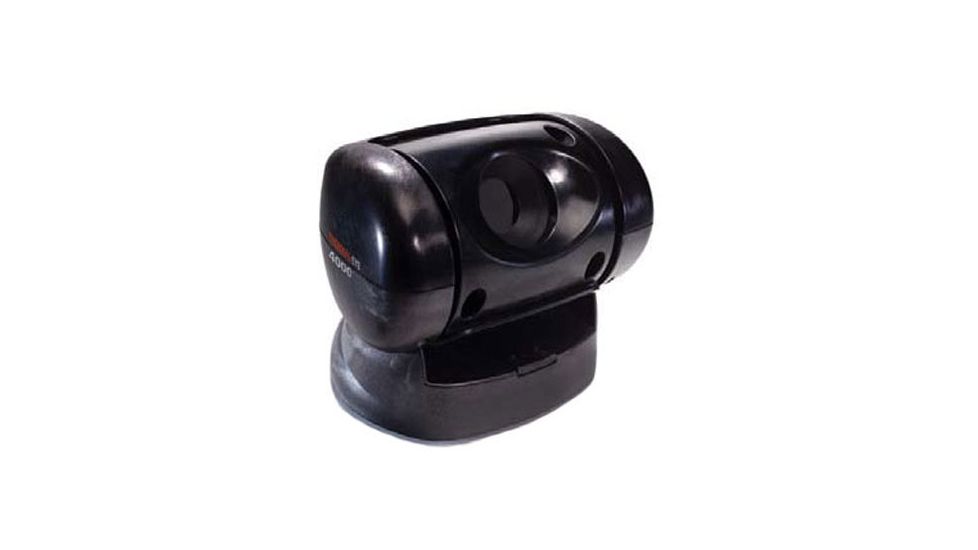

The Thermal Eye 4000 Vehicle-Mounted Thermal Imaging Camera System is a vehicle-mounted thermal imaging camera system, developed specifically for public safety, security and military applications. There are two models of this Thermal Imaging Camera from Thermal Eye - 4000 B and 4000 M. The Thermal-Eye 4000M is a sealed and saltwater-proof marine version with PAL compatible video output.

Applications of Thermal Eye 4000 B/M:

  • Search and rescue
  • Area sweeps
  • Fugitive searches
  • Nighttime navigation
  • Routine nighttime patrols
  • Perimeter surveillance
  • Pollutant detection on the water

Specifications for Thermal-Eye 4000 Vehicle-Mounted Thermal Imaging Camera System:

L3 Thermal Eye 4000 B/M Vehicle-Mounted Thermal Imaging Camera System
Focal Plane Array Type & Material: Uncooled Ferroelectric

Pixel Count: 160 x 120

Spectral Response: 7-14 µm

Thermal Imaging Performance Start-up Time: ˜ 45 sec

Contrast / Brightness: Automatic

Detection Range for Human Activity: Up to 1500ft (450m)

Optics Minimum Focus Distance: ˜ 25ft (8m)

Focus Method: Automatic

Field of View: (12° x 9°)

Video Output Format: NTSC Compatible (4000B); NTSC or PAL Compatible (4000M)

IR Polarity: White=Hot, Black=Cold

Power, Input Voltage 9.5 to 16 VDC
Physical Characteristics Size: 11.1"L x 11"W x 11.4"H (282 x 280 x 290mm)

Weight: 10 lbs. (4.5 kg)

Mounting Provisions: Mobile Mount or Stationary Mount

Environmental Operating Temp: -40°C to 55°C

Water Resistance: Carwash spray, (Not submersible) - 4000B; IEC level IPX6 (Not submersible) - 4000M

Pan and Tilt Function: Pan / Joystick Controlled, 360° continuous; Tilt / Joystick Controlled -20° to +180°

EMC Compliance: FCC Part 15 & CE Mark

Features and Benefits of L-3 Thermal-Eye 4000 Vehicle Mounted Thermal Imager:

  • The only continuous 360° pan and tilt vehicle-mounted camera available for long-range detection
  • Best value in the market for pan and tilt imaging
  • Detects long range and without the blooming effect often seen with other night vision technologies
  • Unaffected by light rain, smoke and dust, and without the use of obtrusive lighting
  • Observe suspicious activity while remaining covert from the safety of a vehicle or boat
  • Detects human activity from up to 450 meters away
  • Complete immunity to damage from solar radiation
  • Joystick and monitor easily configure into any vehicle/marine interior system
  • NTSC/PAL compatible video output
  • Roof mounting bar available
