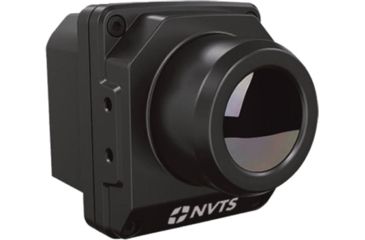

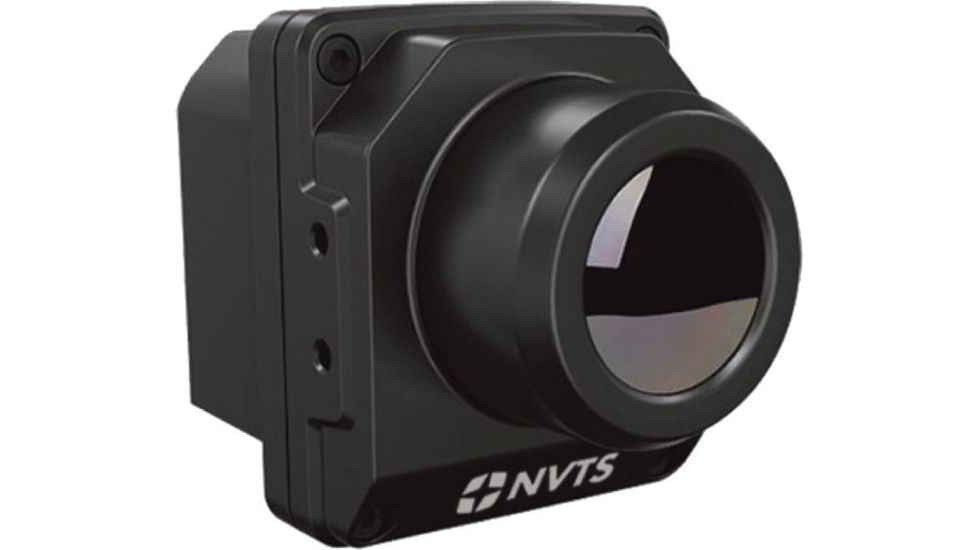

NVTS Alert DVE Intelligent ADAS Infrared Night Vision System for Vehicle Situational Awareness

The NVTS Alert DVE Intelligent ADAS Infrared Night Vision System for Vehicle Situational Awareness was developed in order to be the best product for anybody looking for an exceptional selection. Designed utilizing some of the most useful available components and engineering, these unique Thermal Vision Cameras from the product professionals at NVTS can last an unbelievably lengthy time. NVTS has been focused on delivering high end goods for countless years, and the NVTS Alert DVE Intelligent ADAS Infrared Night Vision System for Vehicle Situational Awareness is the verification of that dedication to their customer base. At Night-Optics, we make it our responsibility to make sure you obtain the best product for all your needs, and featuring the NVTS Alert DVE Intelligent ADAS Infrared Night Vision System for Vehicle Situational Awareness is one thing that we are pleased to do. And since we will not charge for delivery on purchases of $49 or more, there may never be a more suitable chance to choose the remarkable NVTS Alert DVE Intelligent ADAS Infrared Night Vision System for Vehicle Situational Awareness. For a fantastic way to make sure you are utilizing some of the best products available, purchase the NVTS Alert DVE Intelligent ADAS Infrared Night Vision System for Vehicle Situational Awareness.

NVTS's Alert DVE 2 ADAS thermal camera enables visibility at night, in dense fog, rain and smoke. Alert's early warning detection identifies unexpected obstacles, highlights sudden events, identifies human and vehicle proximity. The Alert DVE 2's razor sharp thermal imager and wide viewing angle enable enhanced driver vision in challenging environmental conditions.

Applications:

• Armored Vehicles
• Police Cards
• Personal Security Vehicles
• Border Control

Specifications:

• Thermal Detector: LWIR
• Resolution: 400 x 300
• Spectral Range: 8-14 µm
• Focal Length: 19mm
• Output Resolution: 720 x 480 NTSC
• Image Frequency: 60 Hz
• Image Processing Algorithm: Auto brightness and contrast/ image enhancement
• Intelligent Alarm: Audio/ Visible Human and Vehicle Detection
• Communication Port: RS232 (Baud rate 9600)
• Audio Port: Standard
• Regulated Voltage 9-32 VDC
• Power Consumption: ? 2.8 W (@12 V), ?8 W (@ 12 V, when heating up the front window)
• Operating Temp: -40° F ~ +158°/-40° C ~ + 70° C
• Storage Temp: -40° F ~ +185° F/-40° C ~ + 85° C
• Auto-Heater: Works when front window temperature is ?36°F ±3.6°F (?2°C ±2°C) and stops when temp is ?44.6°F ±3.6 °F (?7°C ±2°C)
• Salt Spray: 6500 working hours under humidity 81%, temperature +77°F (+25º C)
• Sand and Dust: 6 working hours under sand/dust density 10 g/m3 ± 3 g/m3, airflow velocity 10 m/s (22 mph)
• Shock: Half-sine wave, acceleration 30 g, duration 11 ms, 5 times/direction, 3-axis / 3-direction
• Vibration: 25-500-25 Hz, sine scanning frequency 1 oct/min, Z-axis 3 g, X, Y-axis 1.5 g, 8h/direction
• Encapsulation: IP67
• Dimensions (LWH): 2.92" x 2.28" x 2.68" (74.2 x 57.8 x 68mm)

Features:

• Anti-glare function
• Vision in darkness, rain, and dense fog
• Long-range detection and alert system
• Compact size and easy interface

Package Contents:

• NVTS Alert DVE Intelligent ADAS Infrared Night Vision System for Vehicle Situational Awareness
