Morovision MV-14HP Mini Night Vision Monocular w/ Data Sheet - Gen 2
Tap Tap to Zoom
Product No Longer Available
Unfortunately Morovision MV-14HP Mini Night Vision Monocular w/ Data Sheet - Gen 2 is not listed by Night-Optics.
Product Info for Morovision MV-14HP Mini Night Vision Monocular w/ Data Sheet - Gen 2

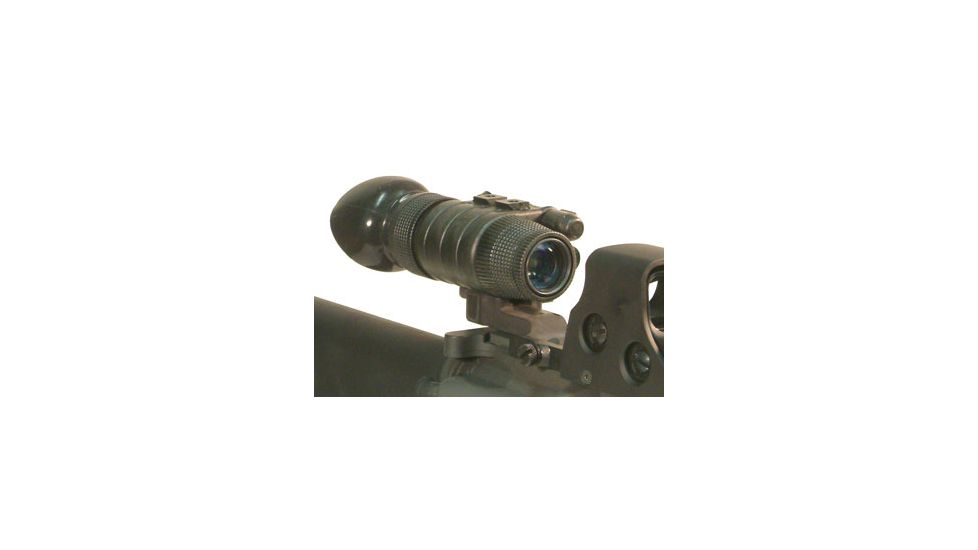

the Morovision Generation II MV-14HP Night Vision Mini Monocular w/ IR Illuminator MVP-MV14HP provides exceptional quality image resolution under varying light conditions. This Night Vision Scope from the professional product experts at Morovision features an innovative mil-spec housing that is extremely lightweight, weighing only 9.2 oz and can be submerged to depths up to 66 feet. The Morovision Gen-2 Miniature Night Vision Monocular operates using either one AA or one 3V lithium battery and includes a built in IR Illuminator for increased image clarity in low light situations. This Morovision Night Vision Device can be hand-held, head-mounted, helmet-mounted as single eye goggle or weapons mounted as night scope. The Morovision Night Vision Generation 2 Mini Monocular an excellent choice for all public safety, homeland security and law enforcement operations.
Specifications for Morovision Mini-Monocular NVD - Gen 2, Built-In Infrared Illuminator:
| Generation: | 2 HP |
| Resolution: | 54-66 lp/mm (Typ) |
| Magnification: | 1x |
| Field of View: | 40° |
| Objective Lens: | F/1.2 |
| Eyepiece Lens: | EFL 26mm |
| Diopter Adjustment: | +6 to -4 diopters |
| Range of Focus: | 10in to infinity / 25cm to infinity |
| Power Source: | One (1) AA battery or One (1) 3V Lithium CR123 |
| Operating Time: | Approx. 40 hrs at room temp. |
| Operating Temperature: | -40°C to +50°C |
| Storage Temperature Range: | -51°C to +85°C |
| Length: | 4.2in |
| Height: | 2.5in |
| Width: | 2.0in |
| Weight w/ Batteries: | 9.2oz / 260g |
| Weather Resistant: | Yes |
| Camera Adaptable: | Yes |
| IR Illuminator: | Yes (built-in) |
Features of Morovision Gen II Mini-Monocular Night Vision Scope w/ IR Illuminator:
- High resolution 54-66 lp/mm (Typ), image intensifier tube
- Multifunctional: Hand-held, head-mounted or
- Helmet-mounted as single eye goggle or weapons mounted as night scope
- Built-in IR Illuminator
- Uses one AA or one 3V lithium battery
- Submersible up to 66 feet
- Comprehensive two-year warranty
- Head Mount Assembly - Allows for hands-free operation. Accommodates the user°"s head size and eye positioning.
- Weapons Mount - Mounts the MV-14P to most all weapons.
- Small, Medium and Large Brow Pads - Changeable pads.
- Helmet/Head Mount Adapter - Attaches MV-14P to head mount assembly or helmet mount. Allows the user to position the monocular in front of either eye.
- Eye Cups - Prevents the emission of stray light or facial reflections.
- Soft Carrying Case- Provides convenient storage.
- Lens Paper - Used to lightly clean the objective and eyepiece glass surfaces.
- Sacrificial Window - Shields the optics from sand, air particles or anything that may scratch the lens.
- Demist Shield - Snaps onto the eyepiece to prevent condensation from forming on the optics.
- Data Sheet - System Test Data Sheet
Package Contents:
- Morovision Generation II MV-14HP Night Vision Mini Monocular w/ IR Illuminator MV14HP
