Product Discontinued by Manufacturer

Lightforce Performance Lighting 10in Dual Row 5W LED Light Bar, 3015 Lumens has been discontinued by Lightforce Performance Lighting and is no longer available. Our product experts have helped us select these available replacements below.

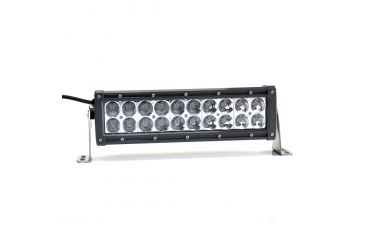

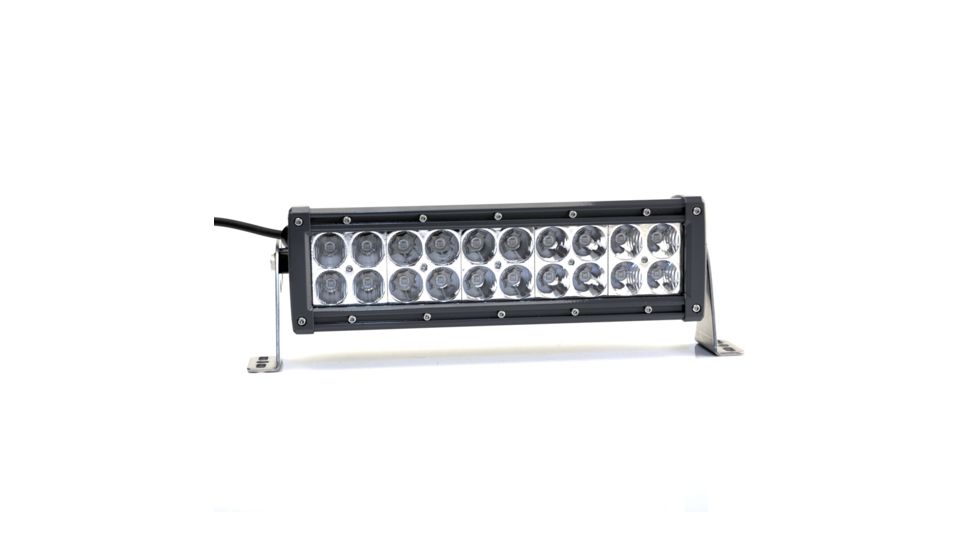

Product Info for Lightforce Performance Lighting 10in Dual Row 5W LED Light Bar, 3015 Lumens

Made using aluminum and finished in a UV resistant anodized coating, the Lightforce 3016 Lumen 10in Dual Row Light Bar was designed to face some of the harshest conditions in the world. These from the illumination experts at Lightforce Performance Lighting are rugged and impact resistant, featuring a hard coated polycarbonate lens for durability and a waterproof rating to IP69K standard. The Lightforce Dual Row LED Bar utilizes high output European LEDs that have been tuned within the reflectors to produce unparalleled performance. With multiple mounting options available and complete with a waterproof Deutsch connector - including full wiring harness - the Lightforce LED Light Bar - 10in Double Row delivers powerful performance in a simple package. For a great way to make sure you have a bright and effective light bar on your automobile, choose the Lightforce 3016 Lumen 10in Double Row LED Light Bar.

Features of Lightforce Dual Row 10in Light Bar:

  • Vehicle: ATV/UTV|Jeep|Truck/SUV
  • Bar Length: 10in
  • LED quantity: 20 pieces
  • Weight: 1.81 kgs / 4 lbs
  • Amp draw: 3.6 @ 13.2V
  • Raw wattage: 100W
  • Input wattage: 48W
  • Raw lumens: 5600
  • Effective lumen output: 3016
  • Distance to 1 LUX: Combo = 327m
  • 3 Year warranty
  • Extruded 6063 aluminum body with black anodized coating
  • IP69K rated to protect against moisture / contaminant ingress
  • Hard coated, scratch and high impact resistant polycarbonate lens
  • Custom fabricated dual injected moulded strain relief connector, fitted to military specification grade cable
  • Genuine Gore waterproof membrane with mechanical seal
  • Submersible to 3 meters
  • Over, under and reverse voltage protection
  • Pulse width modulation thermal management circuitry
  • Electromagnetic (EMC) and radio frequency (RFI) interference circuitry
  • Stainless steel brackets and mounting hardware
  • Comprehensive wiring harness
  • Broad operating voltage range of 10 ~ 36 volts
  • Deutsch waterproof connectors
  • RoHS certified

Package Contents:

  • Lightforce 10in Dual Row Light Bar 3016 Lumens
  • 2 x Stainless steel brackets
  • Stainless steel mounting hardware, side bracket, torx fitting and key
  • Full wiring harness (relay, switch connector)
  • User instructions
