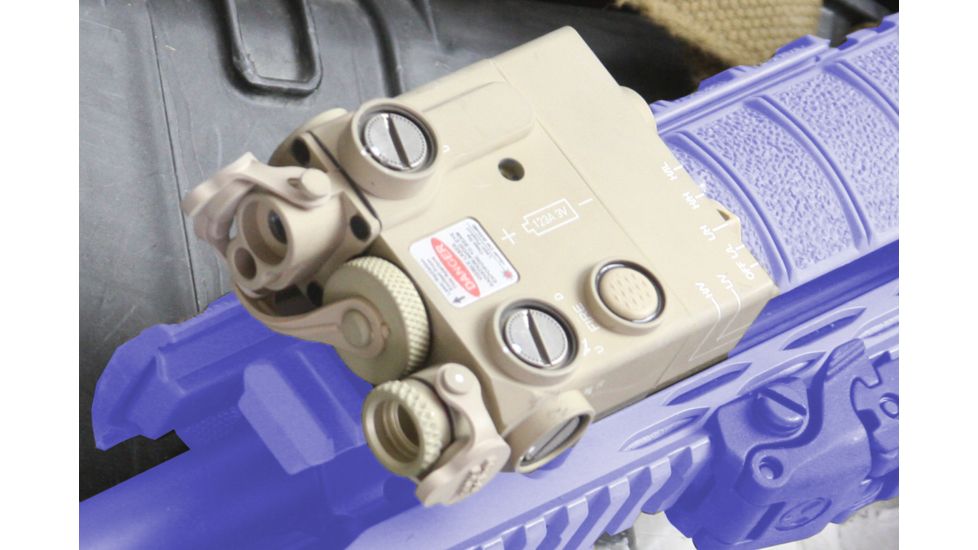

Steiner Laser Devices DBAL-A2 - with Visible Red Laser Pointer 635nm
Tap Tap to Zoom
Product Discontinued by Manufacturer
Steiner Laser Devices DBAL-A2 - with Visible Red Laser Pointer 635nm has been discontinued by Steiner and is no longer available. Our product experts have helped us select these available replacements below.
Product Info for Steiner Laser Devices DBAL-A2 - with Visible Red Laser Pointer 635nm
The powerful Steiner DBAL-A2 IR/Laser Pointer Illuminator is equipped with an IR pointer, an IR pointer/illuminator and a visible pointer for daylight and low light operations. The Steiner DBALA2 Illuminator IR/Laser is designed for maximum operational versatility while keeping weight and size to a minimum. The Steiner DBAL-A2 Laser/IR Illuminator Sight has a single activation switch, low profile windage and elevation adjusters and an extended illuminator port which defines the illumination area. Frequently compared to the plastic-molded Steiner ATPIAL (AN/PEQ-15), the Steiner IR/Vis Pointer/Illuminator DBAL-A2 delivers superior operational longevity due to its all metal housing and mounting system. When duty calls, you can count on the superior Steiner DBAL-A2 Laser/IR Sight - it's widely considered the most innovative multi-functional laser system available today.
Specifications for Steiner Laser Sight/IR Illuminator DBALA2:
| Laser Type, Visible Pointer <5mW: | Class IIIa |
| Laser Type, IR: | Class IIIb |
| Power Output (Hi / Lo), Visible Red Pointer: | <5mW / <1mW |
| Power Output (Hi / Lo), IR: | <50mW / <1mW |
| Wavelength, Visible Red Pointer: | 635nm |
| Wavelength, IR: | 835nm |
| Full Angle Beam Divergence, Visible Red Pointer: | 0.3 mrad |
| Full Angle Beam Divergence, IR Pointer: | 0.3 mrad |
| Full Angle Beam Divergence, IR Pointer/Illuminator: | 0.5 - 75 mrad |
| Range/Visibility (Night/Day), Visible Red Pointer: | 500m / 10m |
| Range/Visibility (Night/Day), IR: | 2000m |
| Temperature: | -40C to +51C |
| Battery: | One 3-volt 123A Lithium or 1.5-volt AA battery |
| Battery Life: | Up to 5 hours continuous |
| Limited Warranty: | 1 year |
| Material: | Anodized aircraft aluminum 6061T-6 |
| Weight (with battery): | 8.2 oz / 232 grams |
| Size: | L 3.4 in x W 2.9 in X H 1.9 in (L 8.5 cm x W 7.4 cm x H 4.8 cm) |
| Environment: | Waterproof to 20 meters |
Features of Steiner DBALA2 Laser/IR Illuminator:
- Rugged aerospace aluminum housing, MIL-SPEC Type III hardcoat anodized
- Hi- and Low-power modes of laser operation
- Instantly switch between laser functions:
- Visible Pointer only
- IR Pointer only
- IR Illuminator only
- IR Pointer & IR Illuminator simultaneously
- Meets MIL-STD-810G for adverse environmental conditions and explosive atmosphere
- ESD compliant for air worthiness
- Activation / low battery indicator light (123A battery only)
- Single adjustment mechanism for both visible and IR pointers
- Remote cable pressure pad switch and integrated momentary activation switch
- Single tap enables momentary activation
- Double tap instantly activates the laser in a continuous ON mode for 5 minutes or until pressed again
- Fully adjustable windage and elevation
- Waterproof to 20 Meters
- Manufactured in the U.S.A.
Package Contents:
- Steiner Laser Devices DBAL-A2 Laser Sight Pointer and IR Illuminator/Pointer
- Quick Release Mount
- Pattern generators
- Battery
- 7 in. remote cable pressure pad switch (specify length if different)
- Nylon pouch
Steiner eOptics 2-Year Warranty
Covers all Night Vision Devices, Laser Aiming Solutions, Beacons, and Battle Lights. Valid in U.S. and Canada only. eOptics warrants its products against defects in workmanship and materials for a period of 2 years from the date of purchase. Warranty is void if the product has been abused, misused, neglected, or disassembled prior to the return to the manufacturer. The Steiner eOptics Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
