Product Discontinued by Manufacturer

FLIR PathFindIR 30-Hertz NightVision Thermal NTSC Camera for Car / Auto has been discontinued by FLIR Systems and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Thermal Vision Cameras yourself to try and find the perfect replacement for you!

Product Info for FLIR PathFindIR 30-Hertz NightVision Thermal NTSC Camera for Car / Auto

Should you be hunting for an amazing deal for the FLIR PathFindIR 30-Hertz NightVision Thermal NTSC Camera for Car / Auto, then you've arrived at the ideal place. Made utilizing some of the very best attainable materials and design, these Thermal Vision Cameras from the product experts at FLIR Systems will last you an exceptionally lengthy time. FLIR Systems has been making superior quality merchandise for a number of years, and the FLIR PathFindIR 30-Hertz NightVision Thermal NTSC Camera for Car / Auto is their particular approach to showing you how much they care. Here at Night-Optics, our responsibility is to ensure that you leave along with the ideal item to meet your requirements, and the FLIR PathFindIR 30-Hertz NightVision Thermal NTSC Camera for Car / Auto is one of the many products that we're enthusiastic to have the ability to provide our buyers. Also, since you will be given free of charge on shipment on orders placed of $49 or higher, there's rarely ever been a better moment to buy the remarkable FLIR PathFindIR 30-Hertz NightVision Thermal NTSC Camera for Car / Auto. For a fantastic way to make sure you are utilizing some of the finest solutions out there, buy the FLIR PathFindIR 30-Hertz NightVision Thermal NTSC Camera for Car / Auto.image

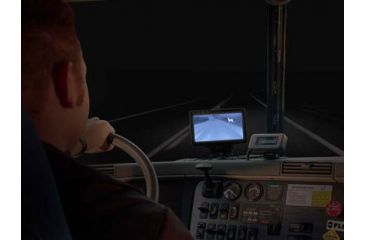

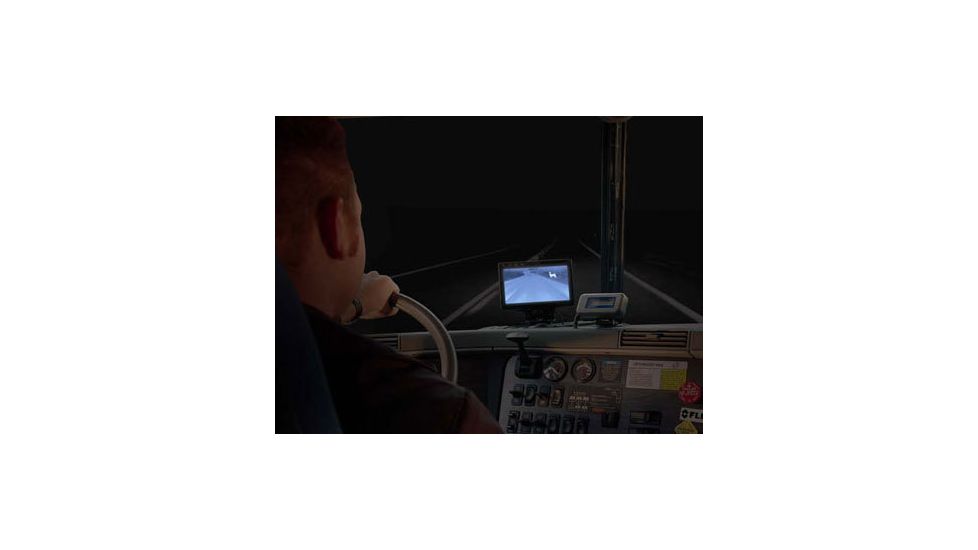

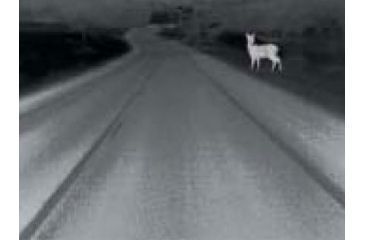

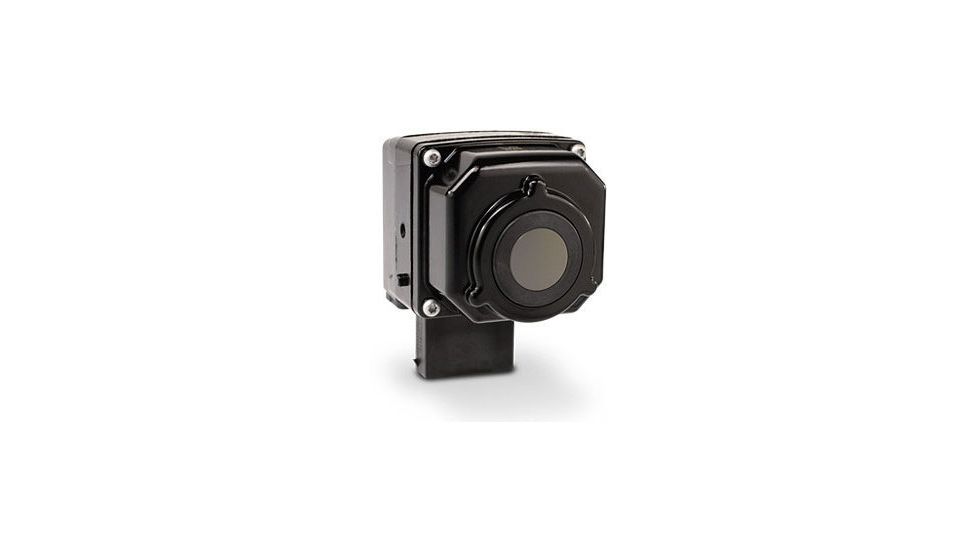

The FLIR Systems Inc. Systems Path-FindIR w/ LE Aftermarket Device is a compact Thermal Imaging Camera that significantly reduces the hazards of night time driving. Automotive Night Vision Systems enable drivers to detect and monitor potential hazards on or near the road, allowing more time to react to any potential danger. The FLIR Systems Inc. PathFindIR Thermal Imager helps the user to recognize pedestrians, animals or objects in total darkness, smoke, rain and snow. This FLIR Systems Inc. Thermal Module can be integrated into military vehicle designs or adapted for aftermarket commercial vehicle applications.

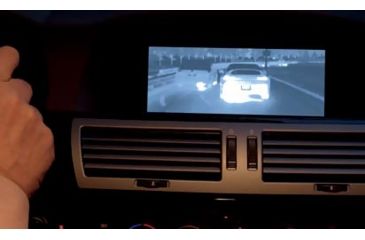

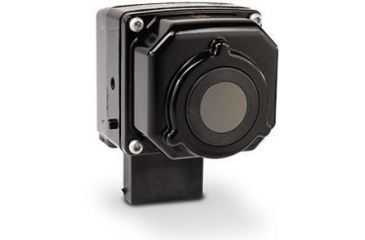

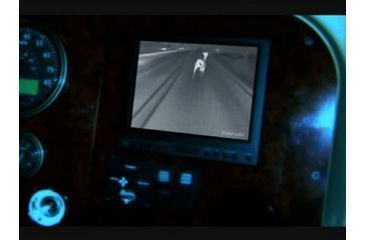

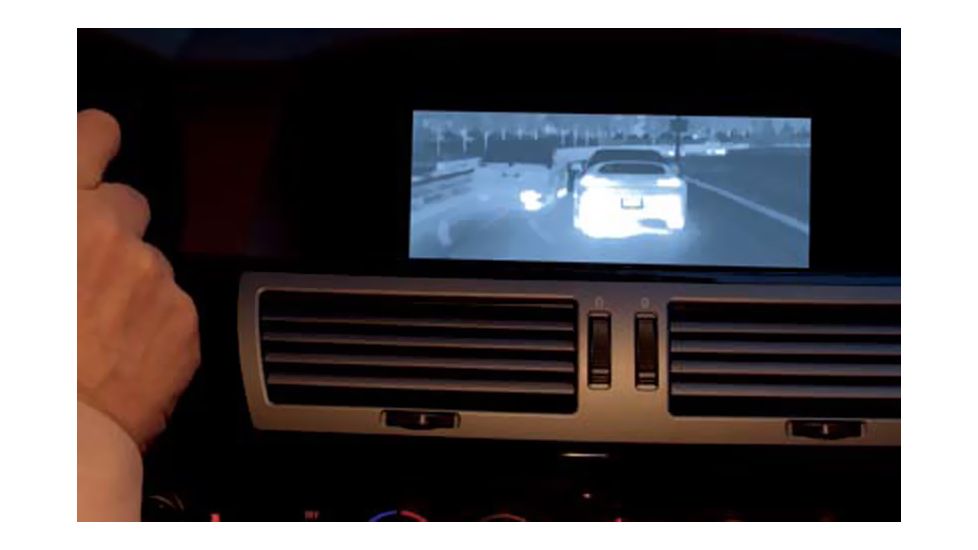

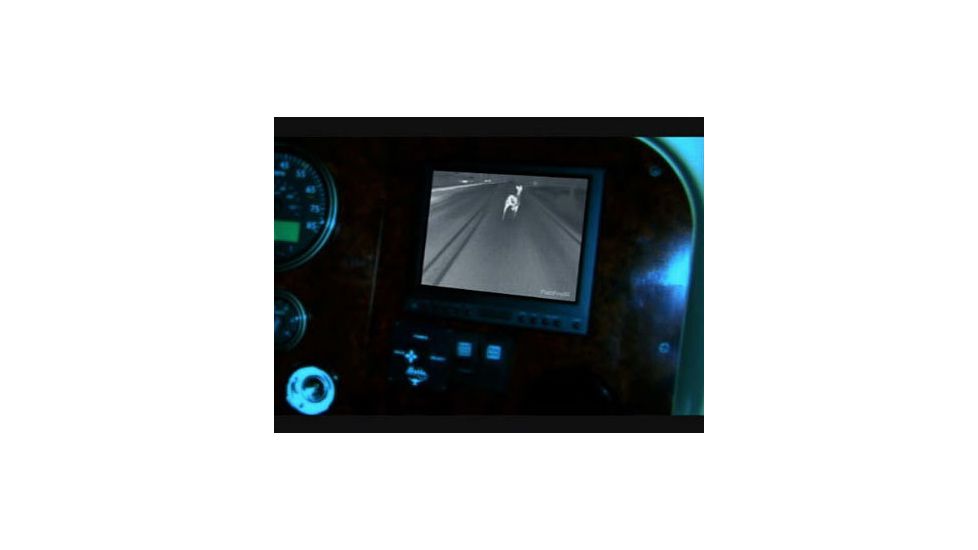

The FLIR Systems Inc. PathFindIR NightVision Device incorporates an uncooled 320 x 240 pixels microbolometer. This maintenance free system delivers crisp video images which can be displayed on virtually any display that accepts composite video. This thermal imager from FLIR Systems is equipped with an 19 mm wide angle lens. It give you an extremely wide field of view (36degree), resulting in excellent situational awareness. The FLIR Systems Inc. PathFindIR Camera is extremely rugged, because it designed for use in harsh environments. Its vital core is well protected against humidity and water. This FLIR Systems Inc. Thermal Imaging System can be cleaned with a hose just like any other equipment and operates between -40 C and +80 C.

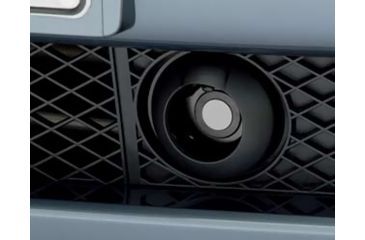

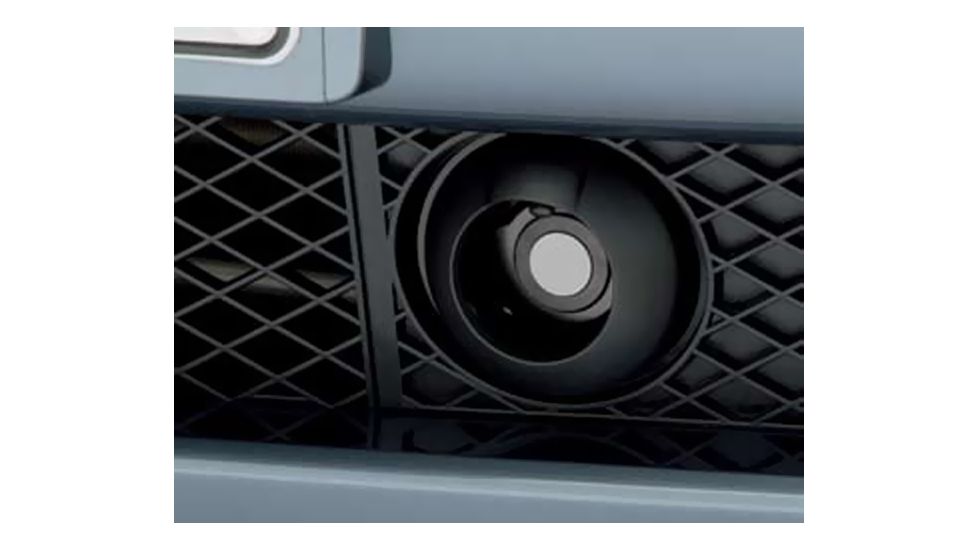

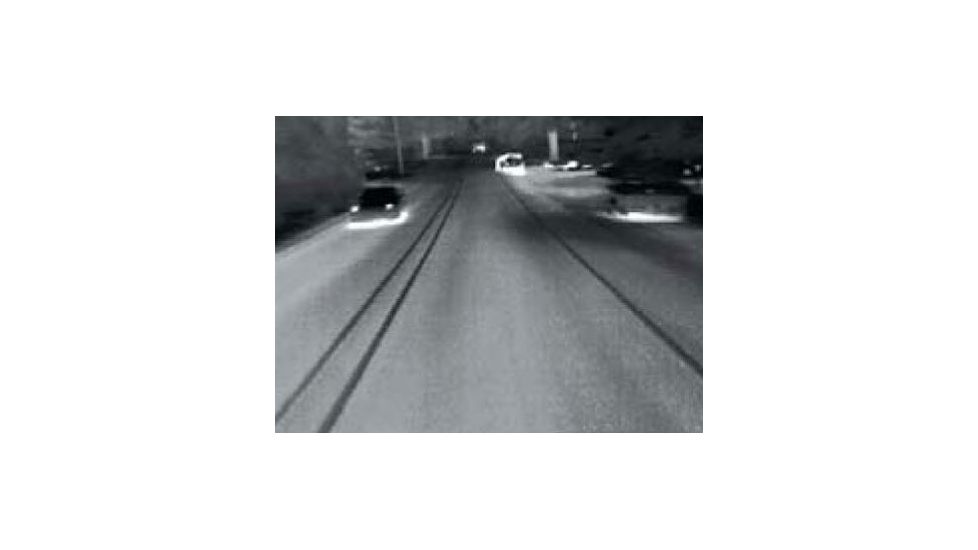

This FLIR Systems Inc. NightVision Device is extremely compact (5.8 x 5.7 x 7.2 cm) and weighs only 360 grams. This allows for easy integration in any vehicle and can easily be installed behind a vehicle grill or in any other compact location. The version includes a 6 meter long cable is available for routing the FLIR Systems Inc. PathFindIR's power and video interface into a passenger compartment and can be adapted to the video input connections on most standard monitors. The FLIR Systems Inc. PathFind IR Infrared Camera not only dramatically increases your ability to see in a night or a day to spot animals, parked vehicles or pedestrians near the road in fog, dust and snow. With FLIR Systems Inc. camera wash system the lens remains clear regardless of conditions. The first fleet order for the Flir Path Find IR Night Vision (cowling mount w/ wash) was to reduce accidents for their pickups/light trucks that have to deal with dusty roads in the summer, bugs, snow, ice and migrating animals in the winter.

Specifications for FLIR Systems Inc. PathFindIR Thermal Imaging:

IMAGING PERFORMANCE:
Detector type: Focal Plane Array (FPA), uncooled microbolometer 324 x 256 pixels
Spectral range: 8 to 14µm
Field of view: 36 (H) x 27 (V) with 19 mm lens
Spatial resolution (IFOV): 2 mrad
Thermal sensitivity: 100 mK at +25C
Image frequency: 8.3 Hz PAL or 7.5 Hz NTSC
Focus: Automatic (25 m to infinity)
Image processing: Digital Detail Enhancement (DDE)
SYSTEM FEATURES:
Time to image: < 2 seconds
Automatic Heater: When window temperature is below +4C
IMAGE PRESENTATION:
Video output: RS170 EIA/NTSC or CCIR/PAL composite video, 75U
Connector types: BNC, with optional pigtail cable
POWER:
Requirements: 6 - 16 V DC
Consumption: 2 W quiescent, 6 W max (with window heater on)
ENVIRONMENTAL SPECIFICATIONS:
Operating temperature range: -40C to +80C
Storage temperature range: -57C to +105C (Extended storage time above +40C is not recommended due to reduction in service life)
Humidity: 6,500 hours at 81% rh at +25C and salt spray per IEC 60068-2-11Ka
Sand/dust: Mil-Std810
Icing: Heater will defrost 2 mm of ice within 15 minutes at -30C and wind speed of 100 km/h
Encapsulation: Hermetically sealed enclosure
Shock: 530g shocks in 2 directions on 3 axes (30 total) 11 mSec duration per IEC 60068-2-27Ea
Vibration: IEC 60068-2-64
PHYSICAL CHARACTERISTICS:
Camera Weight: 360 grams
Camera Size: 57.4 mm x 56.1 mm x 71.4 mm excluding connector which protrudes an additional 28.7 mm

Features of FLIR Systems Inc. PathFindIR Night Vision Device:

  • Thermal nighttime vision camera
  • Sealed Design
  • High Impact Optic
  • Fast Integration
  • Analog video output
  • Digital Data (LVDS) LIN Communication
  • For mote customization and higher level
  • Low Cost

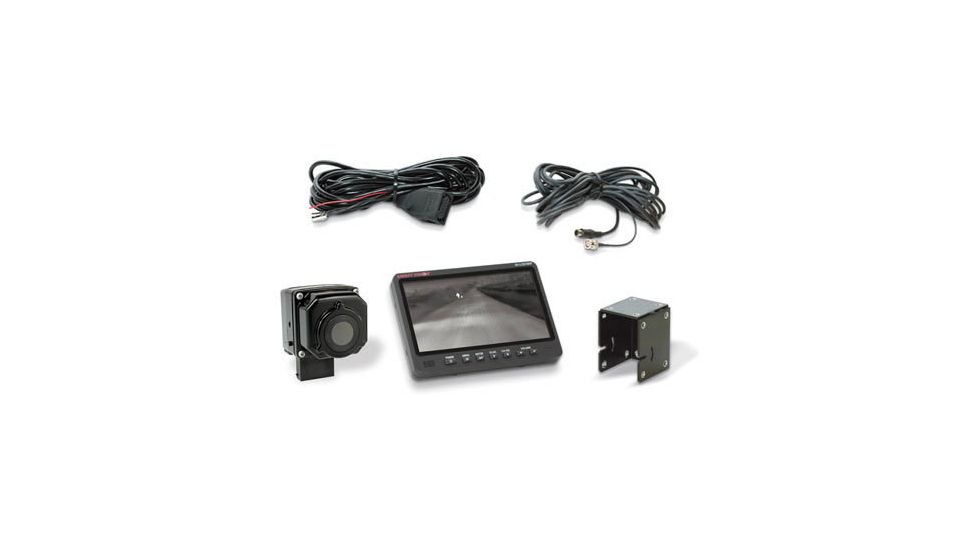

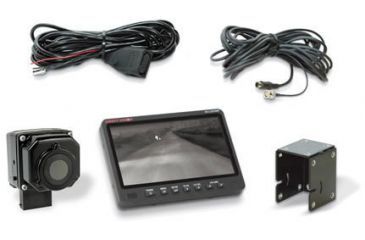

Package Contents:

  • FLIR Systems Inc Path Find-IR NightVision Thermal 30-Hertz Camera, NTSC
  • PathFindIRâ„¢ LE Installation DVD
