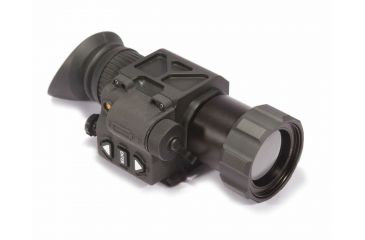

ATN OTS-X-S630, 640x480, 30mm, 9Hz Thermal Imaging Monocular
Tap Tap to Zoom
Product Discontinued by Manufacturer
ATN OTS-X-S630, 640x480, 30mm, 9Hz Thermal Imaging Monocular has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Personal Thermal Imaging yourself to try and find the perfect replacement for you!
Product Info for ATN OTS-X-S630, 640x480, 30mm, 9Hz Thermal Imaging Monocular
The ATN OTS-X-S630, 640x480, 30mm, 9Hz Thermal Imaging Monocular was made to function as the ideal product for anyone looking for a top quality selection. Manufactured utilizing some of the very best attainable components and construction, these particular Personal Thermal Imaging from the product experts at ATN can last an exceptionally lengthy time. ATN has been making high quality merchandise for a very long time, and the ATN OTS-X-S630, 640x480, 30mm, 9Hz Thermal Imaging Monocular is their very own manner of showing you just how much they are concerned. Right here at Night-Optics, we make it our personalized task to ensure that you depart with the perfect item for all of your needs, and the ATN OTS-X-S630, 640x480, 30mm, 9Hz Thermal Imaging Monocular is among the countless items that we are very proud to supply our shoppers. And because you will not be charged for shipping on orders placed of $49 or more, there's not ever been a significantly better moment to buy the extraordinary ATN OTS-X-S630, 640x480, 30mm, 9Hz Thermal Imaging Monocular. For a fantastic way to make sure that you are operating with some of the best equipment, purchase the ATN OTS-X-S630, 640x480, 30mm, 9Hz Thermal Imaging Monocular.
The ATN OTS-X-S360 1.5x Thermal Imager Monocular TIMNOTSXS630 has been created with the amazing optics and functions you'll need to have a successful hunt. The ATN OTSX S360 9Hz Thermal Imaging System is designed to be a versatile, compact, lightweight yet rugged thermal viewer that can be easily carried in a cargo pocket for Law enforcement and Sportsmen alike. This Heat Seeking Monocular from ATN is one of the most affordable thermal viewers on the market that includes a full 640x480 sensor. One of the most unique features of the ATN S360 OTSX Heat Seeking Thermal Scope is the ability to interchange the objective lens so you can have multiple magnifications based on your need or mission.
Specifications for ATN OTS-X-S360 1.5X (9Hz) Thermal Imaging Viewer:
| Sensor (microbolometer): | 640 x 480 |
| Type: | Uncooled |
| Material: | Vanadium oxide (VOx) |
| Image Size (output resolution): | 800x600 |
| Frame rate: | 9 Hz |
| Video output: | Analog RS-170 |
| Lens: | 30 mm |
| Display: | Color OLED matrix, SVGA< 800x600 |
| Thermal Sensitivity: | <50mK |
| Spectral Response: | 7-14 um |
| Field of View: | 22° |
| Eye Relief: | 27 mm |
| Diopter Adjustment: | -1.5 |
| Optical Magnification: | 1.5X |
| E-Zoom: | 3X, 6X, 12X |
| Human Detection: | 750 |
| Human Recognition: | 300 |
| Human Identification: | 180 |
| Vehicle Detection: | 1650 |
| Vehicle Recognition: | 660 |
| Vehicle Identification: | 400 |
| Polarity control: | White hot / Black hot / Multiple Color Modes |
| Start up time: | <4 sec |
| Waterproof: | Yes |

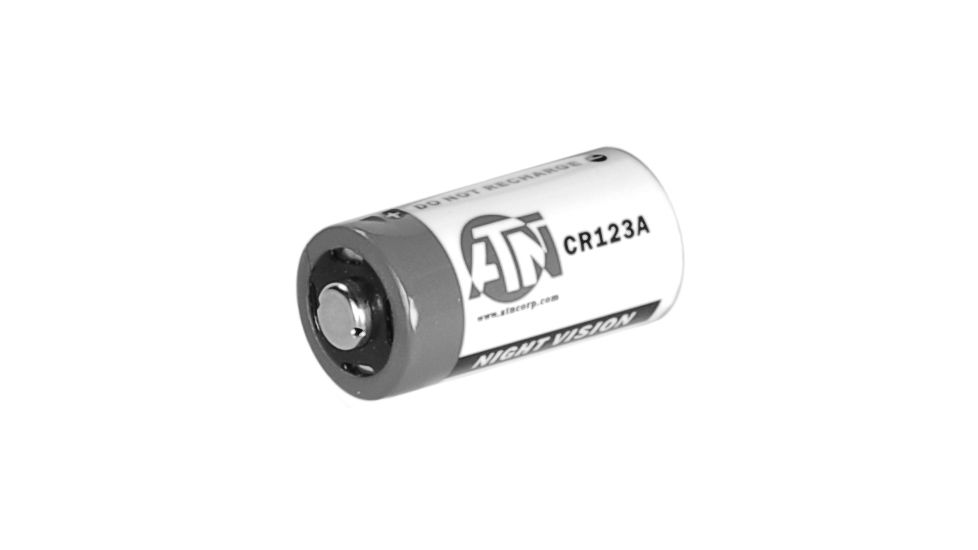

| Battery type: | 1 x CR123A battery type |
| Weight: | 1.1lb /500 gr |
| Battery Life: | 2+ hrs |
| Dimensions: | 145 x 61 x 83 mm /5.75x2.4x3.3" |
| Warranty: | 1 year |
Features of ATN Thermal Image OTS X S360 Heat Seeking Scope:
- Resolution 640x480
- Ergonomic Design
- Standard Imaging (9hz)
- Compact Rugged Construction
- Interchangable Optics
- Variable Geometry Display
- E-Zoom
- Digital Brightness Control
- Icon Based Menu System
- Color Modes
- Black/White Polarity
- VOx Vanadium Oxide Detector
- 800x600 Display
- Video Output
- 1 Year Warranty
Package Contents:
- ATN OTS-X-S360 1.5x Thermal Imager Monocular TIMNOTSXS630
Batteries
Thermal Monocular Accessories
