ATN OTS-X-E314 Heat Seeking Monocular - 320x240, 14mm, 60Hz
Tap Tap to Zoom
Product Discontinued by Manufacturer
ATN OTS-X-E314 Heat Seeking Monocular - 320x240, 14mm, 60Hz has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Personal Thermal Imaging yourself to try and find the perfect replacement for you!
Product Info for ATN OTS-X-E314 Heat Seeking Monocular - 320x240, 14mm, 60Hz
If you are hunting for an amazing offer on the ATN OTS-X-E314 Heat Seeking Monocular - 320x240, 14mm, 60Hz, then you have come to the right spot. These Personal Thermal Imaging through the expert product experts at ATN are fashioned by using long lasting and reliable components, to be able to provide you with product which is going to be effective for countless years. ATN has been developing superior quality products for a number of years, and the ATN OTS-X-E314 Heat Seeking Monocular - 320x240, 14mm, 60Hz is their very own approach to demonstrating how much they are concerned. Here at Night-Optics, we ensure that it is our obligation to ensure you obtain the perfect solution for all your requirements, and presenting the ATN OTS-X-E314 Heat Seeking Monocular - 320x240, 14mm, 60Hz is a thing that we're pleased to do. Because we won't bill for delivery on purchases of $49 or over, there could not be a significantly better chance to choose the outstanding ATN OTS-X-E314 Heat Seeking Monocular - 320x240, 14mm, 60Hz. For a great way to ensure you are using some of the finest solutions out there, buy the ATN OTS-X-E314 Heat Seeking Monocular - 320x240, 14mm, 60Hz.

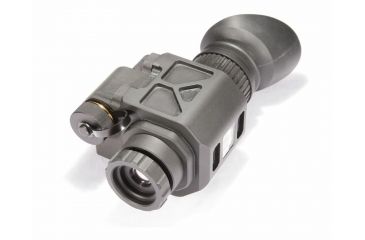

The ATN OTS-X-E314 Thermal Imaging 60HZ Monocular TIMNOTSXE314 series is designed to be a versatile, compact, lightweight yet rugged thermal viewer that can be easily carried in a cargo pocket for Law enforcement and Sportsmen alike. This Thermal Scope from ATN is one of the most affordable thermal viewers on the market that includes a full 320x240. One of the most unique features of the ATN Thermal Imaging OTS X E314 Thermal Monocular is the ability to interchange the objective lens so you can have multiple magnifications based on your need or mission.
Specifications for ATN Thermal Imager OTS-X-E314 Monocular:
| Sensor (microbolometer): | 320 x 240 |
| Type: | Uncooled |
| Material: | Vanadium oxide (VOx) |
| Image Size (output resolution): | 800x600 |
| Frame rate: | 60 Hz |
| Video output: | Analog RS-170 |
| Lens: | 14 mm |
| Display: | Color OLED matrix, SVGA< 800x600 |
| Thermal Sensitivity: | <50mK |
| Spectral Response: | 7-14 μm |
| Field of View: | 25° |
| Eye Relief: | 27 mm |
| Diopter Adjustment: | -1.5 |
| Optical Magnification: | 1X |
| E-Zoom: | 2X, 4X |
| Human Detection: | 500 m |
| Human Recognition: | 225 m |
| Human Identification: | 135 m |
| Vehicle Detection: | 1100 m |
| Vehicle Recognition: | 495 m |
| Vehicle Identification: | 300 m |
| Polarity control: | White hot / Black hot / Multiple Color Modes |
| Start up time: | <4 sec |
| Waterproof: | Yes |
| Battery type: | 1 x CR123A battery type |
| Battery Life: | 2+ hrs |
| Weight: | 0.83 lb /375 grams |
| Dimensions: | 100 x 61 x 83 mm /4x2.4x3.3" |
| Warranty: | 1 year |
Features of ATN OTX-X 14mm 60hz Thermal Imaging Monocular:
- Resolution 320 x 240
- Ergonomic Design
- Enhanced Imaging (60hz)
- Compact Rugged Construction
- Interchangable Optics
- E-Zoom
- Variable Geometry Display
- Digital Brightness Control
- Icon Based Menu System
- Color Modes
- Black/White Polarity
- VOx Vanadium Oxide Detector
- 800x600 Display
- Video Output
- 1 Year Warranty
Package Contents:
- ATN OTS-X-E314 Thermal Imaging 60HZ Monocular TIMNOTSXE314
Batteries
Thermal Monocular Accessories
