ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular
Tap Tap to Zoom
Product Discontinued by Manufacturer
ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Personal Thermal Imaging yourself to try and find the perfect replacement for you!
Product Info for ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular
Manufactured to be described as a very good item for pretty much any individual, we are positive you will love the ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular . These Personal Thermal Imaging through the skilled product specialists at ATN are designed by using heavy duty and efficient components, in order to provide you with product that will be useful for quite some time. ATN has been devoted to delivering high quality products for countless years, and the ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular is the verification of that persistence for their consumer platform. Right here at Night-Optics, our job is to ensure you depart along with the ideal product for your requirements, and the ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular is amongst the numerous items which we have been delighted to have the ability to provide our customers. Because we won't bill for shipping on orders placed of $49 or over, there may not be a significantly better time to choose the exceptional ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular. To have an amazing solution to make sure you are using some of the best which the community provides, purchase the ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular.

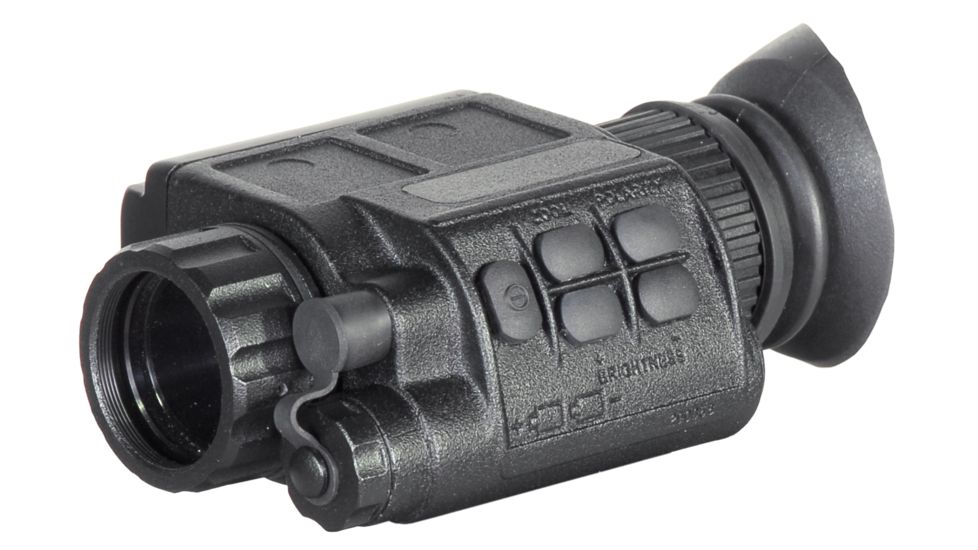

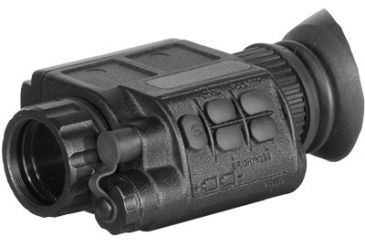

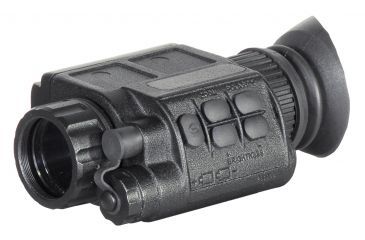

The ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular has raised the standard for affordable, small, lightweight thermal imaging viewers. They're pocket-sized, rugged and durable. These ATN OTS-30 Thermal Digital Imaging Monoculars are built around state-of-the-art uncooled thermal imaging technology. ATN OTS-30 Thermal Digital Imaging Multi Purpose Monoculars w/ OLED Color Display offer superior performance, compact size, comfort of wear, and cost efficiency, making them the perfect choice for most any thermal imaging application. ATN OTS-30 Thermal Digital Imagers are ideal for home security, public safety, first responder and security operations.
Specifications for ATN OTS-30 Thermal Digital Imaging Multi Purpose Monoculars w/ OLED Color Display:
| Video Frame Rate: | Varies by model - 9Hz, 30Hz, or 60Hz |
| Magnification: | 1X |
| Objective Focal Length: | 19 mm |
| FOV: | 11° x 8° |
| Focus Range: | 3m to infinity |
| Exit Pupil: | 14mm |
| Eye Relief: | 28mm |
| Detector Type: | Uncooled Microbolometer |
| Spectral Response: | 7-14 μm |
| Resolution: | 320x240 |
| Pixel Size: | 25 x 25 μm |
| Thermal Sensitivity: | < 0,1°C |
| Range to Detect a Human: | 475 m |
| Output Format: | Analog PAL / NTSC |
| Display: | Color OLED matrix |
| Display Format: | SVGA, 800 x 600 pxl |
| E-ZOOM: | Yes |
| Brightness Adjustment: | Manual |
| Contrast Adjustment: | Automatic |
| Power Supply: | 2 x 3 V CR123A type battery |
| Start-Up Time: | < 5 sec |
| Operating Time w/ one battery pack: | 4+ hrs |
| Operating Temperature Range: | from -30°C to +60°C |
| Waterproof: | Yes |
| Dimensions: | 118x81x52 mm |
| Weight (w/batteries): | 0.34 kg |
| Warranty: | 1 year |
Features of ATN OTS-30 Thermal Digital Imaging Monoculars:
- Compact & lightweight design
- Digital imaging
- Enhanced Imaging (60hz)
- Vanadium oxide (VOx) Microbolometer Uncooled
- Rugged design with mil. spec optics
- Menu functions include reticle type & color selection; windage & elevation adjustment
- Digital brightness control
- Polarity single button modes: black on white, white on black, 5 different color settings
- E-zoom
- Video output with RCA cable
- Diopter range: +2° to -6°
- Eye relief: 28mm
- Extended battery life using two (2)
- CR123 lithium batteries (4-plus hours)
- 4 different reticles with choice of reticle color: black, red, green, or white
- MIL-STD-1913 (Picatinny Rail) Quick Release Mount
- Head/helmet mountable for hands-free use
- Weapon mountable
- One-year warranty
Package Contents:
- ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular
- Instruction Manual
- Lens Tissue
- Packing box
- Warranty card
- (2) 3 V CR123A type battery
- Lens Cap
- Soft carrying Case
