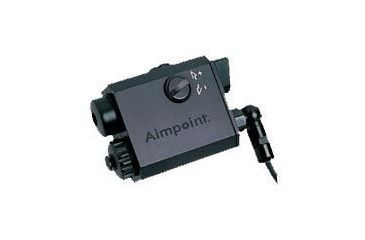

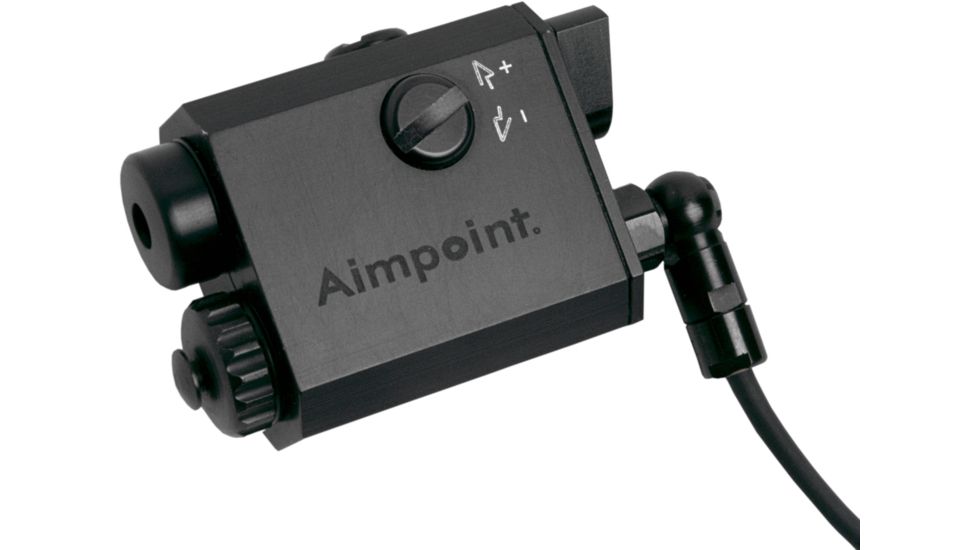

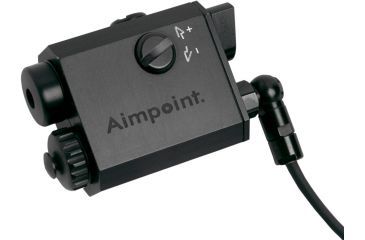

Aimpoint LPI, IR Laser Aiming Device Laser Sight 10932
Tap Tap to Zoom
Product Discontinued by Manufacturer
Aimpoint LPI, IR Laser Aiming Device Laser Sight 10932 has been discontinued by Aimpoint and is no longer available. Our product experts have helped us select these available replacements below.
Product Info for Aimpoint LPI, IR Laser Aiming Device Laser Sight 10932
The Aimpoint LPI, IR Laser Aiming Device Laser Sight 10932 is an active aiming device or target designator for military and Law Enforcement applications in darkness or poor light conditions. This Aimpoint Laser Sight a development based on long experience in engineering and manufacturing of lasers ranging from pistol to military infantry rifle applications. The Aimpoint LPI is intended as a complement to the passive aiming systems from Aimpoint. It is designed to fit directly on an Aimpoint red dot sight, which means that no special rail system is required.
This is a truly unique tool, lightweight, small and sturdy. It enhances the red dot sight capability and meets the increasing demands on target lasers. The combination provides a choice to select the best sight to suit all conditions. This is the smallest military IR laser aiming device with a slim design and it meets all military demands. The desired wavelength insert can be selected from a range of basic laser sources. The insert can be adjusted in X and Y axis independently of the red dot sight.
Specifications for Aimpoint LPI, IR Laser Aiming Device Laser Sight 10932:
| Â Light source Setting High Setting Low | ||||
| Wavelength:Â | Â 840 nm (IR) 840 nm (IR) | Â | ||
| Beam output power:Â | Â 0.1 Mw 0.005 Mw | Â | ||
| Beam Shape:Â | Â 5 x 2 mm 5 x 2 mm | Â | ||
| Beam divergence:Â | Â typ 0.5 mrad typ 0.5 mrad | Â | ||
| Laser class:Â | Â 1 1 | Â | ||
| Adjustment of laser beam:Â | Â 1 Click = 0.28 mrad | Â | ||
| Adjustment of laser beam: |  ± 20 mrad |  | ||
| Power supply:Â | Â Battery | Â | ||
| Quantity:Â | Â 1 | Â | ||
| Power:Â | Â 3 V | Â | ||
| Size:Â | Â DL1/3N, 2L76 | Â | ||
| Type:Â | Â LiMn02 | Â | ||
| Â Dimensions | ||||
| Housing width: |  44 mm ± 0.5 mm |  | ||
| Housing height: |  24 mm ± 0.5 mm |  | ||
| Overall ( housing ) length: |  (47.5 ± 2 mm) 77 mm ± 2 mm |  | ||
| Weight:Â | Â Estimated weight including battery < 130 gr | Â | ||
| Article number:Â | Â 10932 | Â | ||
Package Contents:
- Aimpoint LPI, IR Laser Aiming Device Laser Sight 10932
